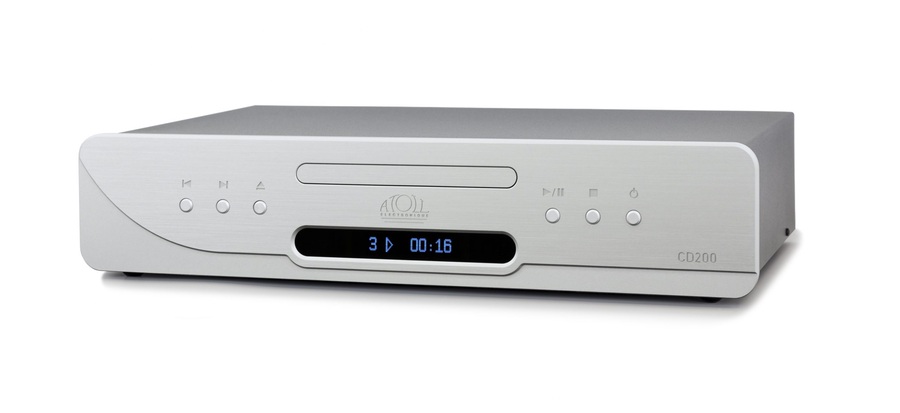

• 8 mm brushed aluminium front.
• 8 regulated power supplies including a specific low-noise one for the converter.
• Separate 10 VA transformers for the audio stages.
• Current-voltage conversion stages designed by Atoll using bipolar transistors.
• BURR-BROWN PCM1792 converter:
            – 24 bits/192 kHz.
            – Dynamic: 129 dB.
            – Signal/Noise ratio: 129 dB.
• Original TEAC central CD mechanics.
• Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.

• Linear power supply for digital stages with a specific 30 VA transformer.
• Separate linear power supply for the audio stages.
• Double-sided circuit boards with nickel/gold finish.
• Low consumption OLED display.
• Reading the CD-Text.
• Class A biased discrete component differential audio output stages.
• Optional 24 bits/192 kHz digital board for all signature series CD players.

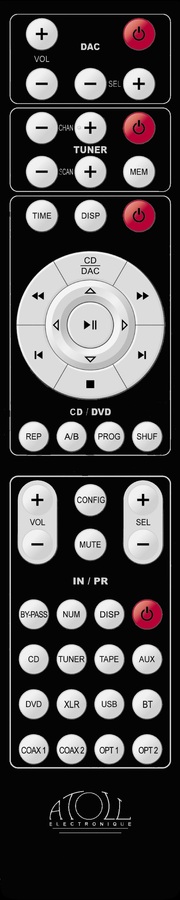

• ATOLL global remote control.

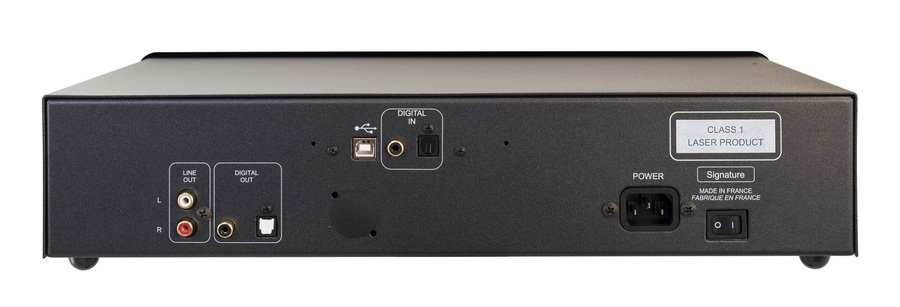

Rear view of CD player (with digital card).

CONNECTIVITY

Outputs

• 1 Line output (right and left).
• 1 Coaxial digital output.
• 1 Optical digital output.

DC200 DIGITAL OPTION BOARD

CD players from the Signature range can be optionally fitted with a card with three digital inputs:

1 Coaxial input (S/PDIF – 24 bits/192 kHz).

1 Optical input (S/PDIF – 24 bits/192 kHz).

1 Synchronous USB-B input: 16 bits to 32 bits PCM stream up to 768 kHz asynchronously (USB interface: XMOS with a program specifically developed for ATOLL).

XMOS SPECIFIC DRIVER

Important: Using the USB input of the optional DAC board requires downloading a specific driver for Windows computers. This can be downloaded below. This driver is not necessary under MAC and Linux.

Download XMOS SPECIFIC DRIVER here:
