B&W 804-D4 Floorstanding Tower Speaker (Pair)
  • B&W 804-D4 Floorstanding Tower Speaker (Pair)
B&W 804-D4 Floorstanding Speaker
Price:
NZ$ 31,998.99 including GST

NZ$ 27,825.21 excluding GST
B&W 804-D4
Rating:
( 0 reviews )
Colour:

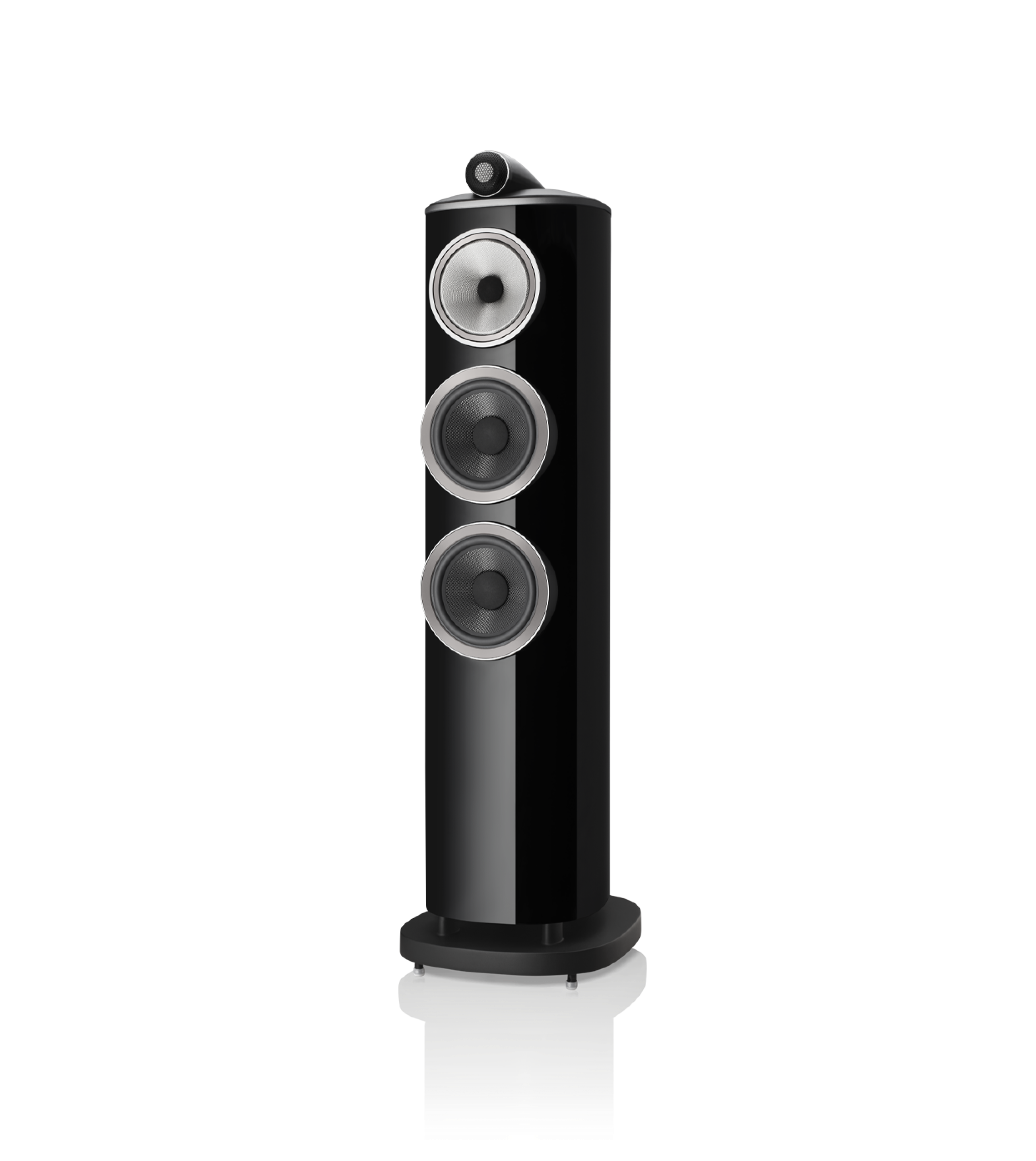

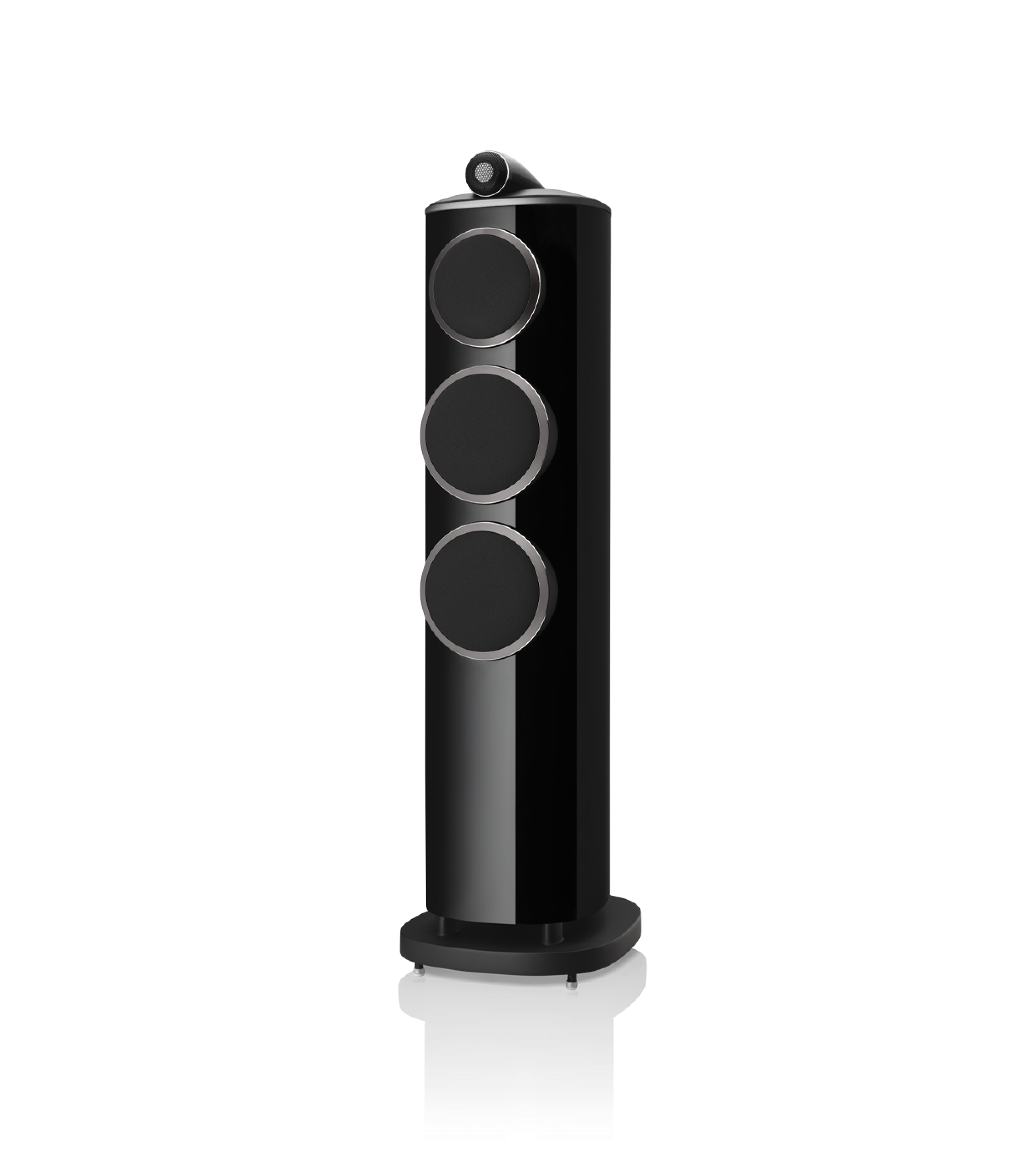

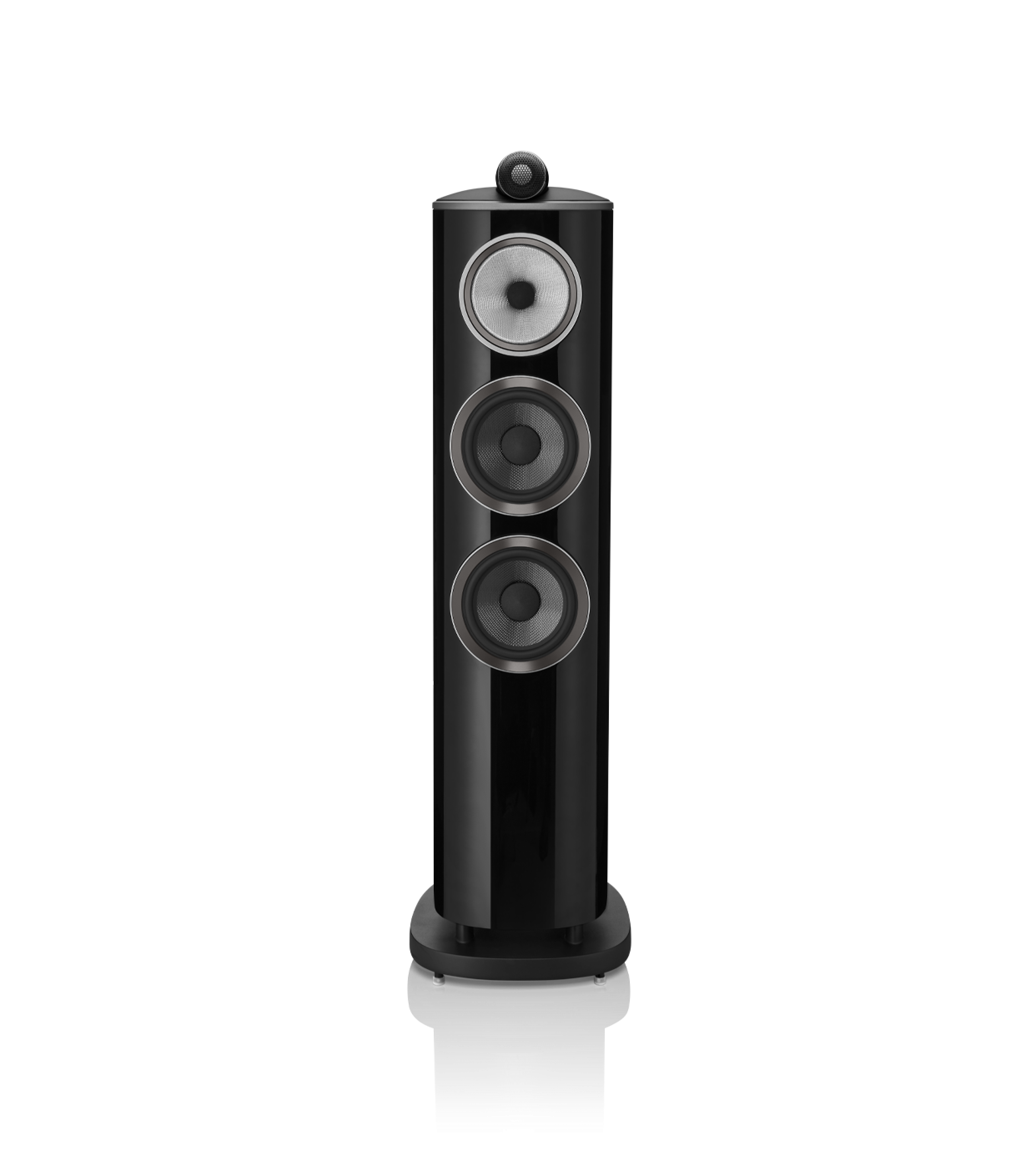

  • Gloss Black

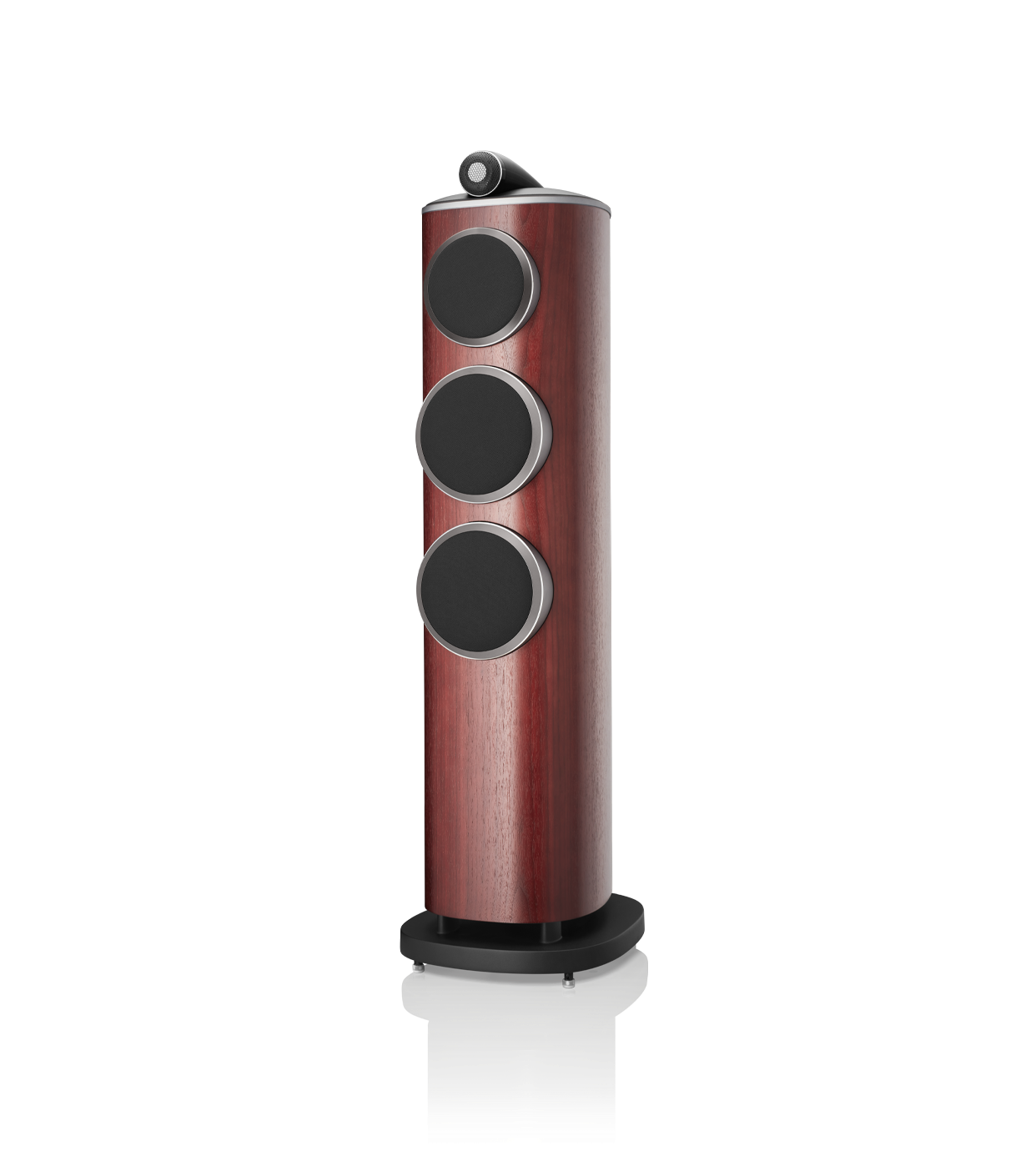

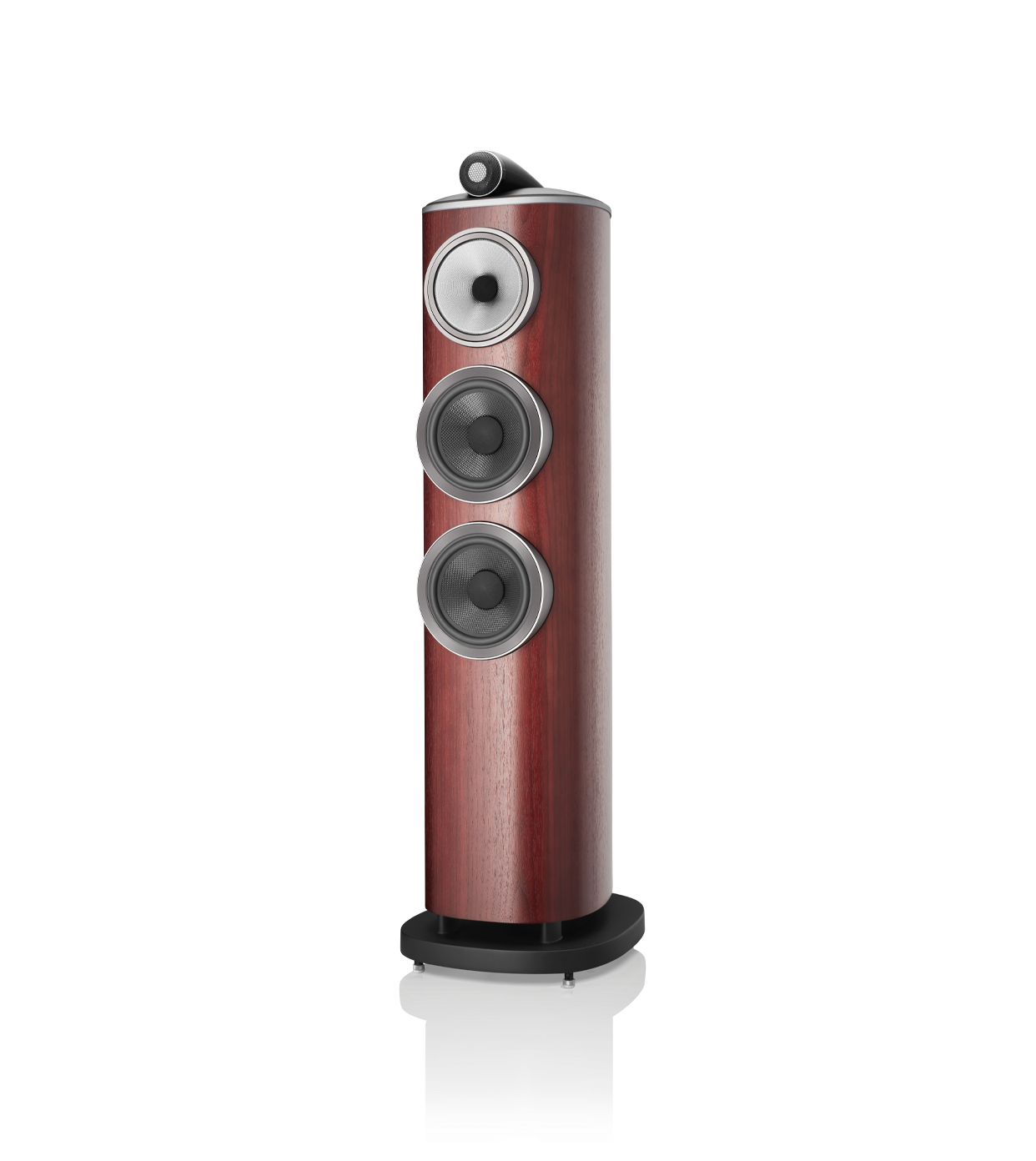

  • Satin Rosenut

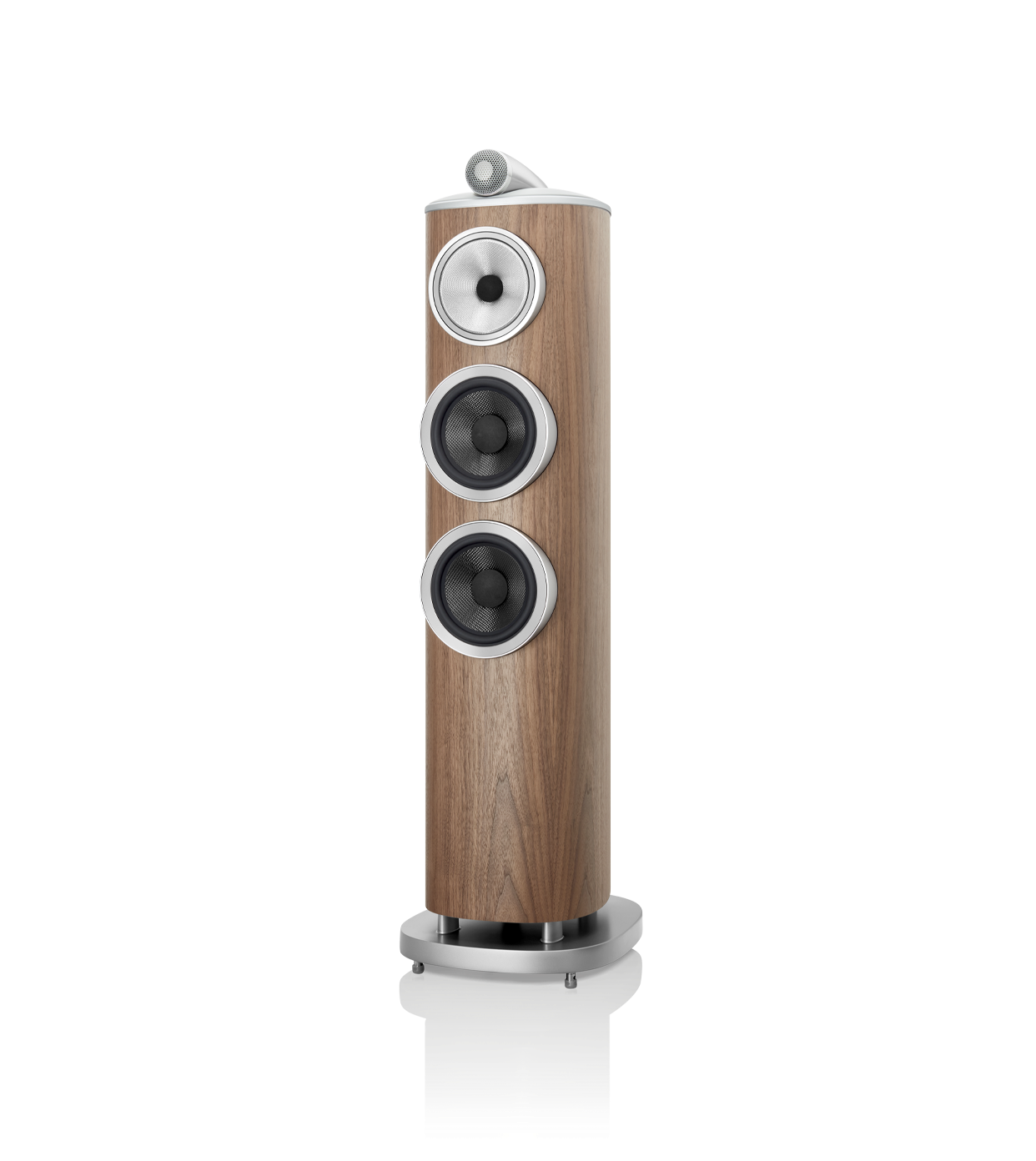

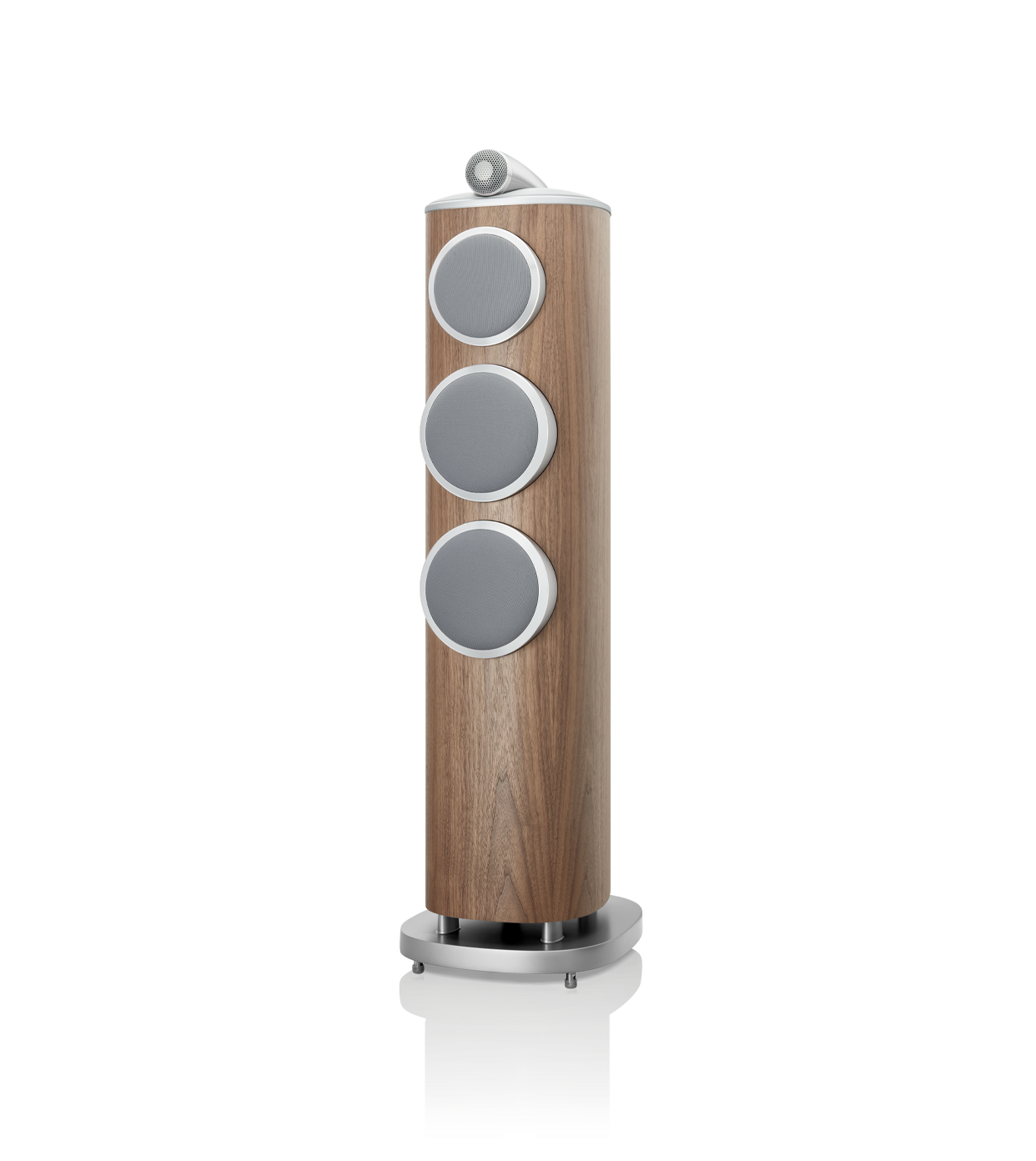

  • Satin Walnut

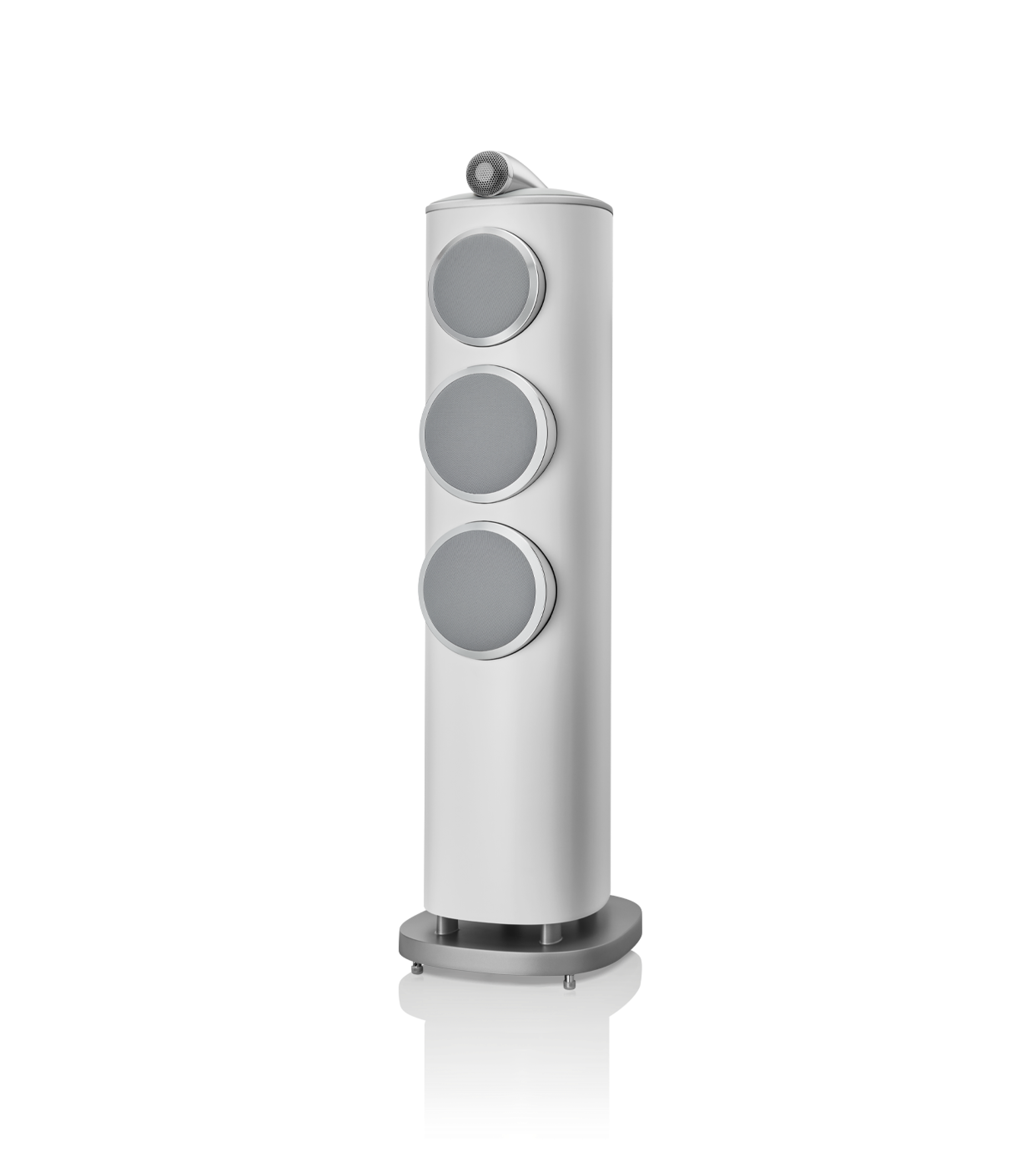

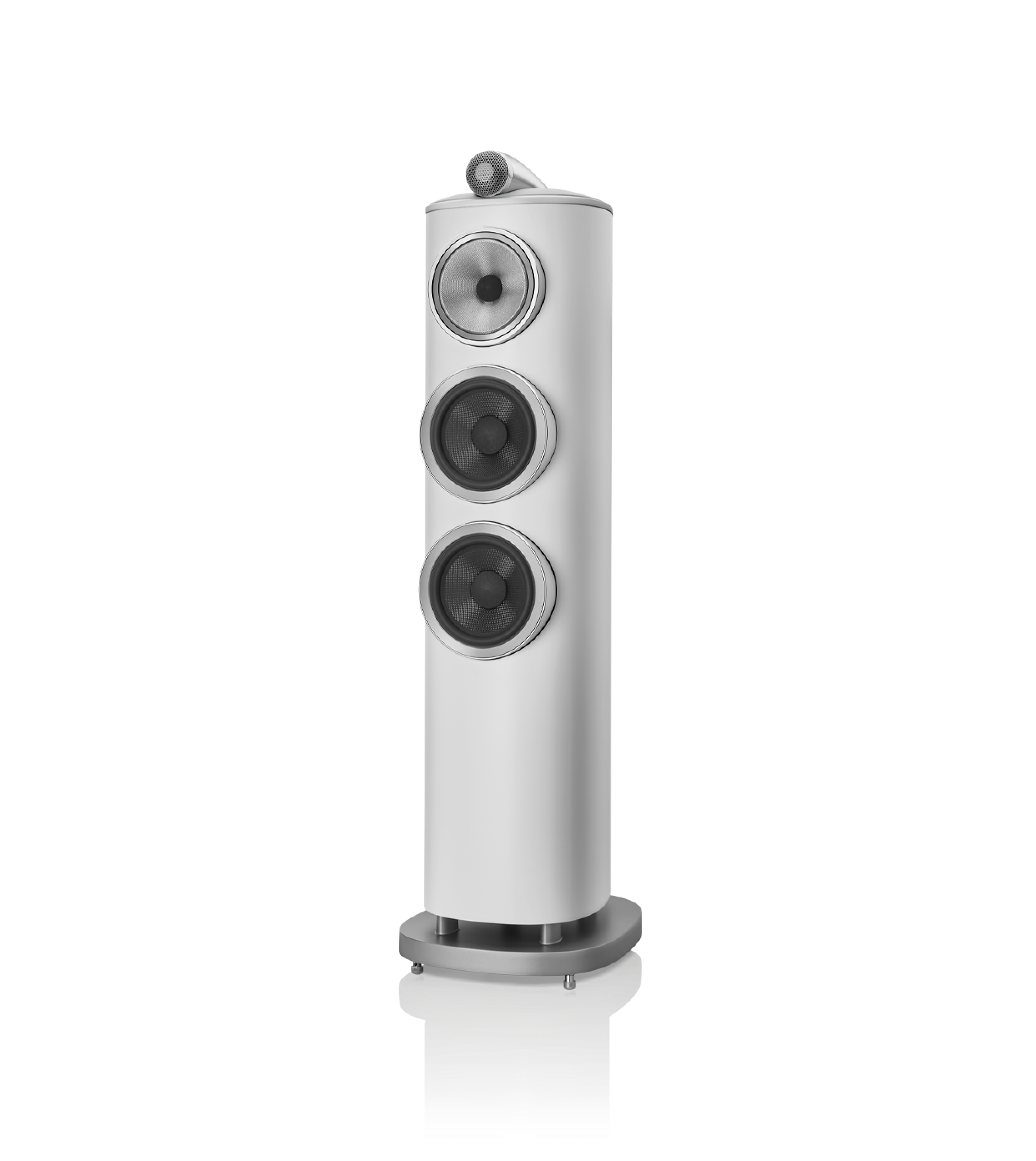

  • White
Purchase Qty:



804 D4

For listeners who crave the performance of an 800 Series Diamond™ floorstander but prefer a more conventional aesthetic, the 804 D4 is the perfect choice. Its new cabinet and plinth make it our best-performing 804 yet.

Classic quality

804 D4 is perhaps more conventional in appearance than other floor-standers in the 800 Series Diamond range, but it’s every bit as sophisticated. Its new Reverse-Wrap cabinet is both a mechanical and acoustic revolution in its class, and its new plinth ensures rock-solid, accurate bass response too.

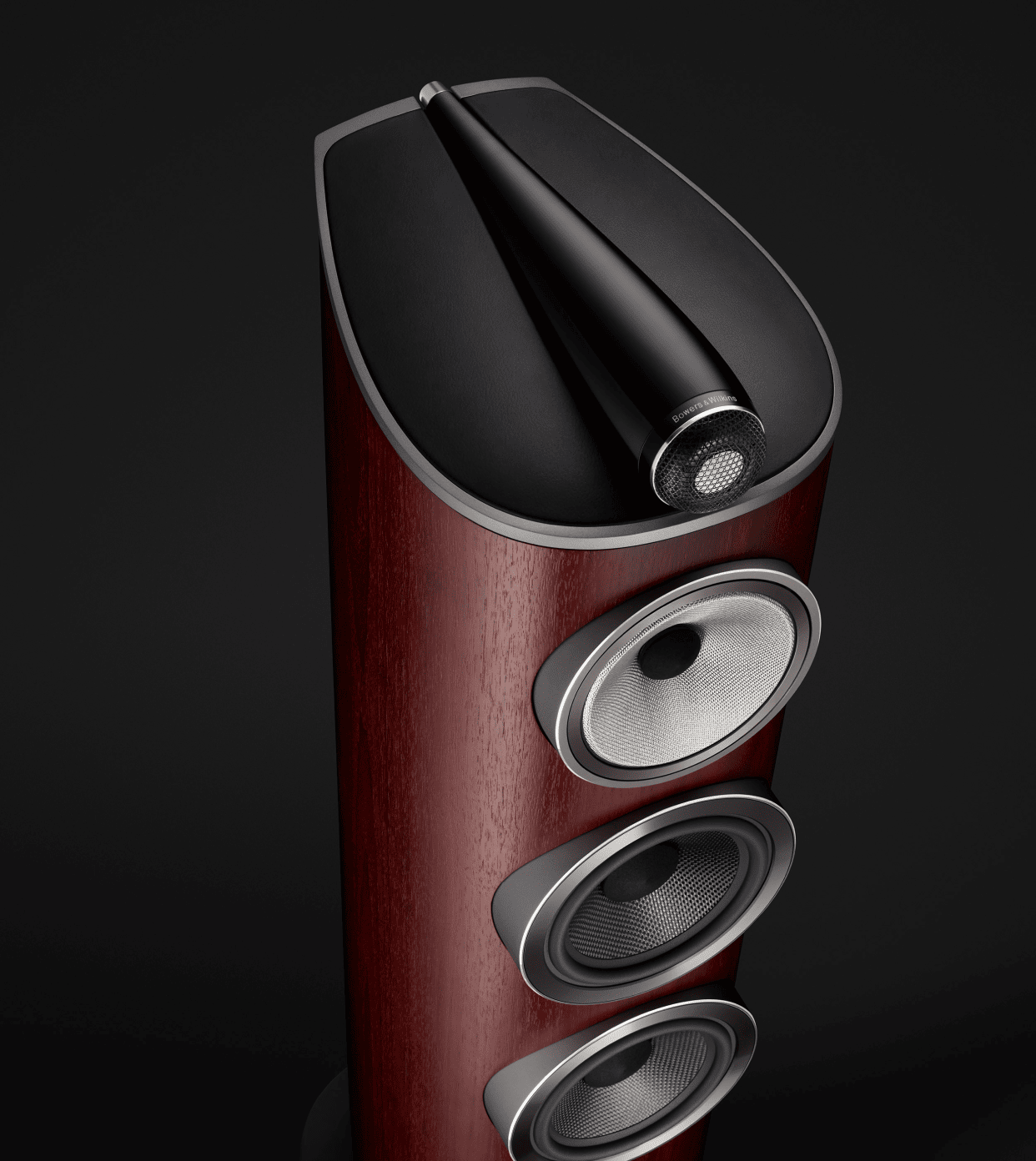

Aluminium top-plate

Every stereo model in the new 800 Series Diamond range has a significantly upgraded cabinet with an all-new aluminium top-plate. This also provides a perfect mounting point for all-new Leather by Connolly trim, with luxurious black leather for dark cabinets and light grey for lighter finishes.

Reverse Wrap cabinet

Instead of a conventional loudspeaker box, the cabinet in 804 D4 is made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.

Aluminium plinth

A great speaker needs a rock-solid foundation. The new 804 D4 uses a downwards-firing Flowport exiting on to a solid aluminium plinth complete with a steel constrained layer damping sheet, which controls unwanted resonance. It also has greatly upgraded spikes for maximum stability and durability.

The science of sound

Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond so special here.

Size & weight

Dimensions Height: 1071mm (42.2 in)
Width: 306mm (12 in)
Depth: 391mm (15.4 in)
Net weight 36.85kg (81.2 lb)

Technical details

Technical features Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ cone bass units
Flowport
Description 3-way vented-box system
Drive units 1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil cone bass units
Frequency range 20Hz to 35kHz
Frequency response 24Hz to 28kHz (+/-3dB from reference axis)
Sensitivity 89dB (on axis at 2.83Vrms at 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB,1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 20kHz
Nominal impedance 8Ω (minimum 3.0Ω)
Recommended amplifier power 50W – 200W into 8Ω on unclipped programme
Max recommended cable impedance 0.1Ω

Finishes

Cabinet finishes Gloss Black
White
Satin Rosenut
Satin Walnut
Grille finishes Black
Grey
Black
Grey
