Sony VPL-GTZ380 4K SXRD 10,000lm laser projector
  • Sony VPL-GTZ380 4K SXRD 10,000lm laser projector

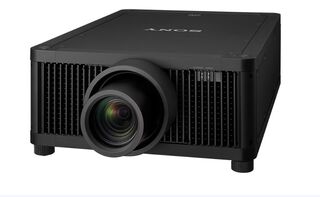

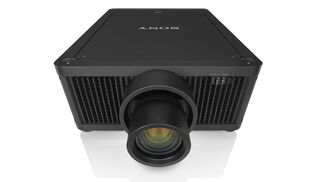

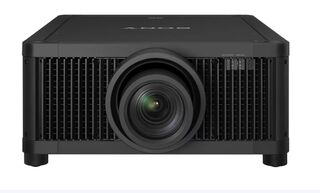

Sony VPL-GTZ380 4K SXRD 10,000lm laser projector

PRICE TBC
SONY-VPL-GTZ380
Rating:
( 0 reviews )

SXRD Projector with 10,000 lumen brightness, true 4K resolution, extreme 16,000:1 contrast and vibrant DCI-P3 colour



Breathtaking images in any setting

The VPL-GTZ380 faithfully displays native 4K resolution (4096 x 2160) images, with no upscaling or pixel shifting tricks often used in lesser projectors. The finest details are breathtakingly crisp and clear, even when your audience is closer to the screen in environments like corporate showrooms and lobbies.



Immersive, seamless images on any scale

Remarkably quiet and compact, the VPL-GTZ380 features a familiar four corner mount design that’s ideally suited to multi-projection installations including large exhibitions, gallery spaces and planetarium domes. Ultra deep black levels – just one of the hallmarks of Sony’s unique SXRD™ technology – reduces the visibility of intrusive banding when multiple projector images are edge-blended to create a super-sized picture.

Immense colour, undimmed

Thanks to its new laser light source, which incorporates a red laser diode in addition to the two different-wavelength blue laser diodes, the VPL-GTZ380 achieves the full DCI-P3 colour gamut that’s 1.35 times wider than the sRGB achieved by other projectors, without any loss of brightness. An additional red laser diode dramatically expands colour volume, with none of the brightness loss common to other high-end models that use a built-in colour filter. The immense colour accuracy of the VPL-GTZ380 makes it a compelling choice for environments such as art galleries and museums.

Higher brightness with a bigger screen

Enjoy the ultimate home cinema experience in any room. With an exceptional 10,000 lumens of brightness and 100% DCI-P3 wide color gamut, you can be assured of spectacular brightness and stunning realism, even in well-lit spaces such as living rooms and media rooms.

10,000-lumen brightness with DCI-P3 colour

The VPL-GTZ380 achieves a DCl-P3 wide colour gamut without sacrificing brightness with a unique 3-channel laser light source. The result is spectacular brightness and images with stunning realism even in well-lit spaces.

Features

SXRD™ for uncompromising picture quality

Our advanced SXRD panel technology offers rich, inky blacks and clear cinematic motion and image smoothness. High heat and light resistance also ensures spectacularly high and stable brightness.

X1™ Ultimate for projector

Our X1™ Ultimate for projector technology takes our acclaimed BRAVIA TV video processing technology and optimises it for projection. The incredible power of the video engine enables fast data processing, with real-time enhancement of each individual on-screen object. The result is true high dynamic range imagery, with texture, colour, contrast and realism never before available to home cinema.

Object-based HDR Remaster

Individual objects on screen are analysed and the contrast adjusted to reproduce greater depth and texture, and more realistic pictures.

Dynamic HDR Enhancer

Our advanced scene-by-scene HDR processing achieves striking highlights whilst maintaining deep black levels.

Object-based Super Resolution

Hundreds of on-screen objects can be identified and their resolution is individually enhanced to give exceptional accuracy and detail.

Dual Database Processing

Two powerful image improvement databases work together to dynamically improve pixels in real-time for image clarity.

Digital Contrast Optimiser

Each scene is analysed and the image contrast optimised in advance to deliver inky blacks and superb shadow details.



Sony VPL-GTZ380 Specifications


Display System

4K SXRD panel, projection system



Display Device

Size of effective display area

0.74” x 3

Number of Pixels

26,542,080 (4096 x 2160 x 3) pixels



Projection Lens *1

Focus

Powered

Zoom

Powered (Z8014:Approx. x1.95 / Z8008:Approx. x1.28 )

Lens shift

VPLL-Z8014 (Optional) : Powered V ± 80%, H ± 33% *2
VPLL-Z8008 (Optional) : Powered V ± 50%, H ± 19% *2

Throw ratio

VPLL-Z8014 (Optional) : 1.49 : 1 to 2.91 : 1 *2
VPLL-Z8008 (Optional) : 0.85 : 1 to 1.09 : 1 *2

Light Source

Laser phosphor

Light Output

10,000lm

Color Light Output

10,000lm

Contrast Ratio

∞:1 (dynamic contrast)

Accepted Digital Signals

720 x 576/50p, 720 x 480/60p, 1280 x 720/50p, 1280 x 720/60p, 1920 x 1080/50i, 1920 x 1080/60i, 1920 x 1080/24p, 1920 x 1080/50p, 1920 x 1080/60p, 1920 x 1080/120p, 1920 x 1080/100p, 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840 x 2160/50p, 3840 x 2160/60p, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p, 4096 x 2160/50p, 4096 x 2160/60p, WUXGA/60p, QXGA/60p, QXGA/120p, WQHD/60p, WQHD/120p, WQXGA/60p, WQXGA/120p



INPUT OUTPUT (Computer / Video / Control)

HDMI

2 inputs (HDCP 2.3), Digital (RGB/Y Pb/CbPr/Cr)

Display Port

2 inputs (Ver. 1.4, HDCP 2.3), Digital (RGB)

TRIGGER

2 connectors, Mini jack, DC 12V Max.100 mA

REMOTE

RS-232C, D-sub 9-pin (male)

LAN

RJ45, 10BASE-T/100BASE-TX

IR IN/OUT

IN:1, Out:1, Mini jack

3D SYNC OUT

3-pin mini-DIN (VESA 3D)

USB

Type A, DC 5 V, Max. 500 mA

Picture processor

X1 Ultimate for projector

OSD Languages

18-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Arabic, Polish)

Acoustic Noise

33 dB ~ 39 dB *3

Operating Temperature / Operating Humidity

5℃ to 40℃ (41°F to +104°F)/20% to 80% (no condensation)

Storage Temperature / Storage Humidity

-10℃ to + 60℃ (14°F to +140°F)/20% to 80% (no condensation)

Power Requirements

AC 200 V to 240 V, 50/60 Hz
AC 100 V to 120 V, 50/60 Hz *4

Power Consumption

AC 100 V to 120 V : 1,200 W
AC 200 V to 240 V : 1,800 W

Standby

0.3 W (When "Remote Start" is set to "Off")

Networked Standby

0.5 W (LAN)(When "Remote Start" is set to "On"). When a LAN terminal is not connected, it becomes a low power consumption mode (0.4 W).

Standby Mode / Networked Standby Mode Activated

After about 10 Minutes

Heat Dissipation

6138 BTU/h

Dimensions (W x H x D)

560 x 228 x 760 mm (22 1/16 x 8 31/32 x 29 15/16 in) (without protrusions)
560 x 262 x 760 mm (22 1/16 x 10 5/16 x 29 15/16 in)

Mass

Approx. 51 kg / 112 lb (excluding lens)

Supplied Accessories

RM-PJ29 Remote Commander (1), Size AA (R6), Manganese Batteries (2), AC Power Cord (1), Plug Holder (1), Safety Regulations (1)

Notes

*1

The lenses are optional accessories.

*2

Display size : 16:9

*3

This value is approximate. Depends on the projector setting condition and usage environment.

*4

Brightness is dimmed.
