Audiolab 8300XP 2ch 140W 8ohm Stereo Power Amp - Audiolab
|
|
Information
The 8300XP is a classic audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior.
Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining audiolab’s class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.
Features
Minimalist exterior

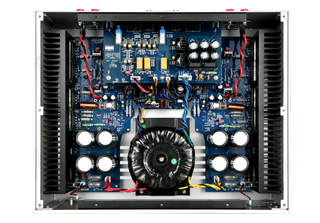

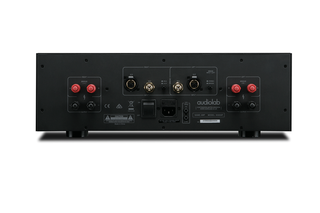

Exemplary build quality and reliability ensure that this is a power amp for all seasons, its versatility increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.
Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, thus increasing the power output to 480W per channel into 8 Ohms. All audiolab amplifiers are gain-matched, ensuring perfect integration with other audiolab components.
Specifications
| Rated power output | 140W RMS (8Ω <1% THD, 1kHZ stereo) |
| 230W RMS (4Ω <1% THD, 1kHZ stereo) | |
| 480W RMS (8Ω <1% THD, 1kHZ bridge) | |
| Gain | 29dB @ 1kHz (stereo) |
| 36dB @ 1kHz (bridge) | |
| Input sensitivity | 1100mV |
| Input impedance | 15k (balanced) 10k (unbalanced) |
| Frequency response -3dB | 20Hz - 80kHz |
| +/-1dB | 20Hz - 30kHz |
| Total harmonic distortion (THD) | 0.004% (20W, ref. 1kHZ) |
| Intermodulation distortion (IM) | 0.004% (20W, ref. 7kHz + 60Hz) |
| Transient inermodulation distortion (TID) | 113dB (A Weighted, ref. 140W) |
| Signal-to-noise ratio (S/N) | 140W / 113dB |
| Damping factor | 160 |
| Power Requirement | 240V ~ 50-60Hz |
| 230V ~ 50-60Hz | |
| 115V ~ 50-60Hz | |
| 100V ~ 50-60Hz | |
| Dimension (mm) (WxHxD) | 444 x 149 x 367 |
| Carton Size (mm) (WxHxD) | 550 x 260 x 580 |
| Weight | 16Kg (Net) 18.5Kg (Gross) |
