Rotel’s Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.

An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

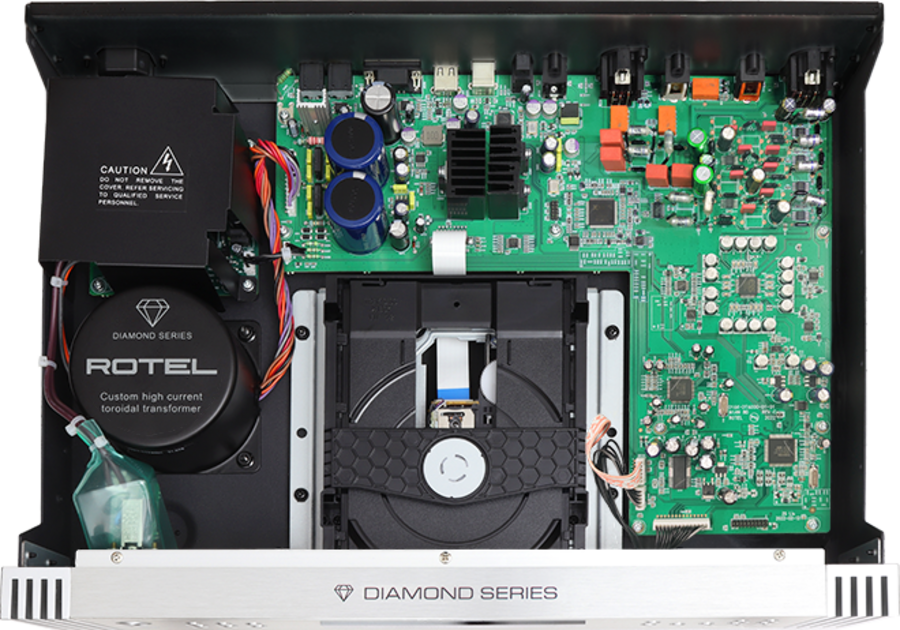

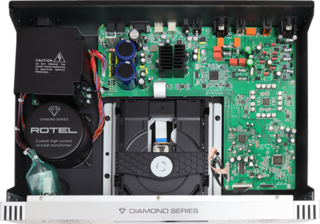

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.

The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X).  Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.

The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.

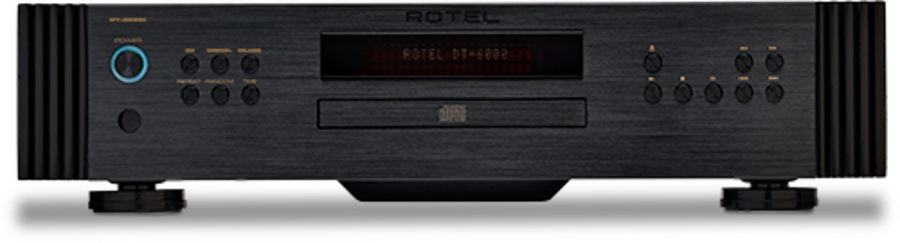

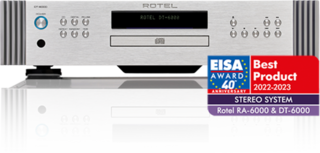

Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

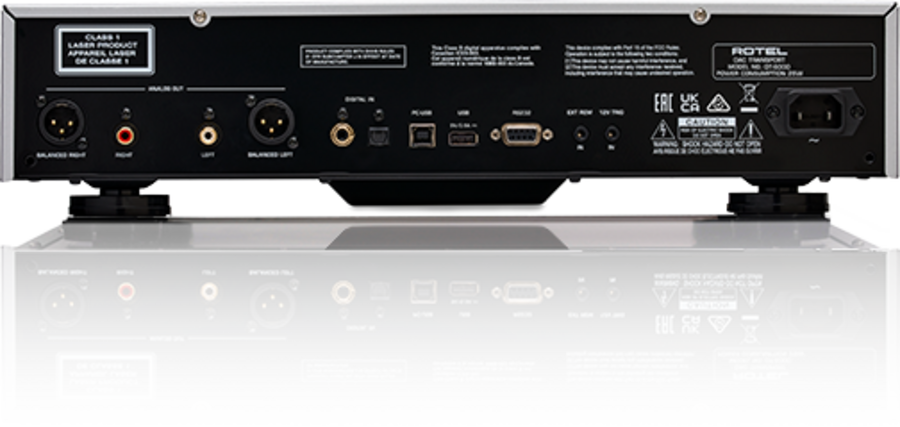

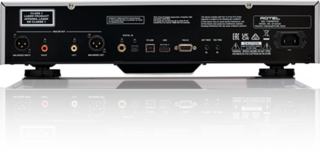

RS232, 12V trigger and external remote input ensure integration with control systems.
