Rotel A12 MKII 60W x2ch @8ohm Integrated Amplifier - Rotel
|
|
Information
-
The A12MKII stands well above its sleek design delivering 60 Watts of dynamic Class AB output into 8 ohms. This integrated amplifier supports your favourite sources including MM Phono Stage, analog, digital, PC-USB and wireless Bluetooth. Optimised circuits and a 32-bit DAC deliver spacious and open reproduction of the music.
The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers.
Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

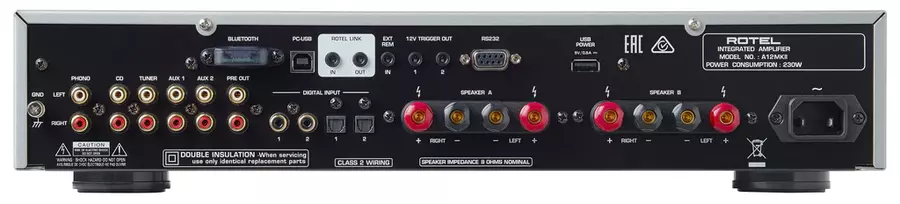

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favourite sources.
The premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimised circuits preserving the integrity of the audio stream.
Slim and powerful, the A12MKII delivers on Rotel’s iconic brand heritage.
Specifications
Amplification
Amplifier Class AB
Power 60
Dimensions (W × H × D)
430 × 93 × 345mm
17" × 3.6" × 13.5"
Front Panel Height
80mm (3.15")
Power Requirements
120V, 60Hz
Power Consumption
230W
Standby Power Consumption
<0.5W
Net Weight
8.76kg (19.31lbs.)
BTU Rating (4Ω, 1/8th power)
632 BTU/h
Maximum Power Output
120W/Ch (4Ω)
Continuous Power Output
60W/Ch (8Ω)
Total Harmonic Distortion (THD)
<0.018%
Frequency Response
Line Level Inputs: 10Hz - 100kHz, 0±0.5dB
Digital Inputs: 10Hz - 90kHz, 0±2dB
Phono Input: 20Hz - 20kHz, 0±0.5dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB
