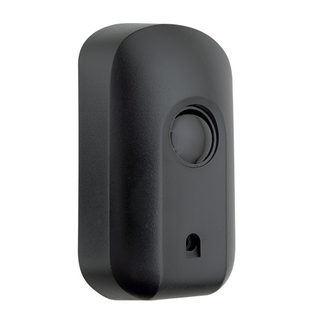

AERO-CSI5V3 - Centurion I5 WIRED Infrared Safety Beam RX & TX Set
|
|
Features
MAIN FEATURES:
- Wide infrared beam makes for supremely easy beam alignment – no more battling onsite.
- Highly cost-effective detection solution.
- Easy commissioning thanks to LED indicators.
- 40 metre range – suitable for even the widest of entrances.
- Compatible with Intruder-detection Alarm functionality (a world first) – greatly improves security.
- Wide input voltage range.
Specifications
I5 INFRARED GATE SAFETY BEAMS TECHNICAL DATA:
| DESCRIPTION | |
|---|---|
| Power Supply | 12 - 24V DC/AC |
| Power Consumption Transmitter | 21mA |
| Receiver | 43mA @ 12V |
| Maximum Distance | 40m |
| Alignment | Automatic - 9m² @ 10m (parallel - circular area) |
| Output Contact Rating | 5A @ 220V AC (non-inductive) |
| Operating Temperature | -15°C to +55°C |
| Operating Humidity | 0% - 90% (non-condensing) |
| Degree of Protection | IP54 |
