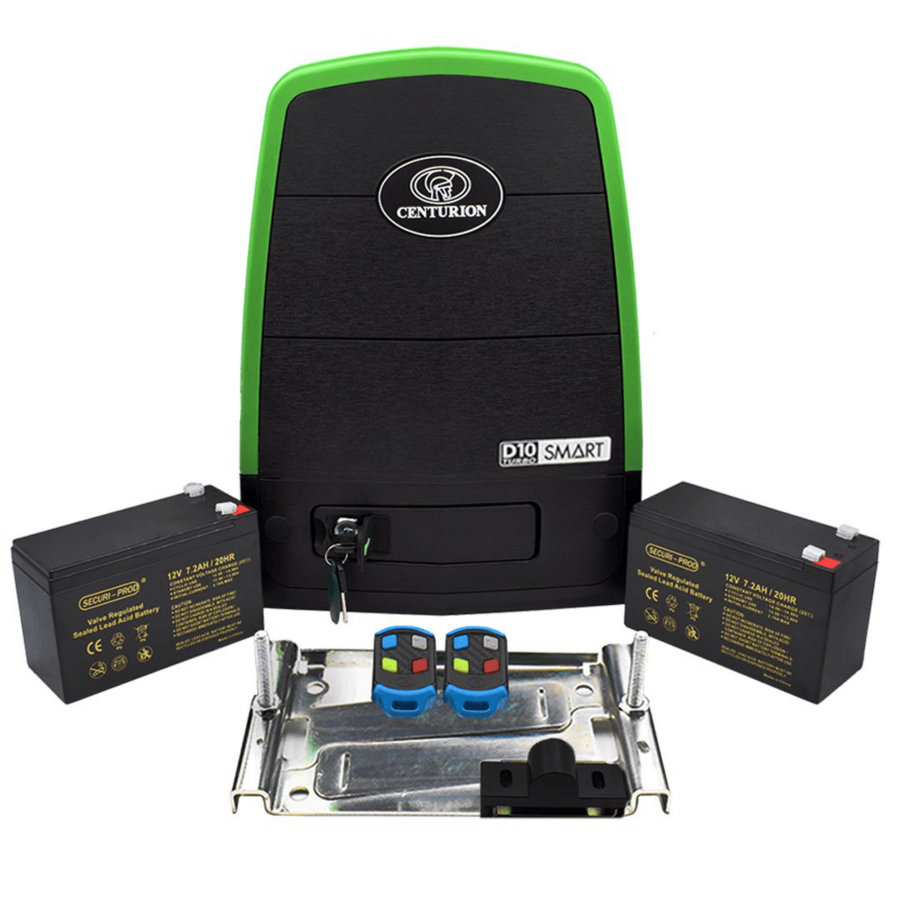

D10 Turbo SMART high-speed, high-security sliding gate motor

The ultimate speed machine just got SMARTer. Introducing the all-new, lightning-fast and intelligent D10 Turbo SMART light-industrial and residential sliding gate motor, the high-velocity sprinter that combines our most innovative technology with awe-inspiring speed to deliver a solution that leaves others in its dust.

Can operate off a solar supply, consult your local dealer for assistance
Based on 25°C ambient temperature and unit not in direct sunlight
Based on a motor push force of less than 50% of rated (Starting and Running forces)
Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
Can increase battery capacity for longer standby times
Based on 4m gate, excluding all accessories
Multiple buttons per remote can be used
Refer to the table below for D10 TURBO SMΔRT’s recommended gate speed for specified gates masses

Main features:

Turbo speed for the best security and convenience

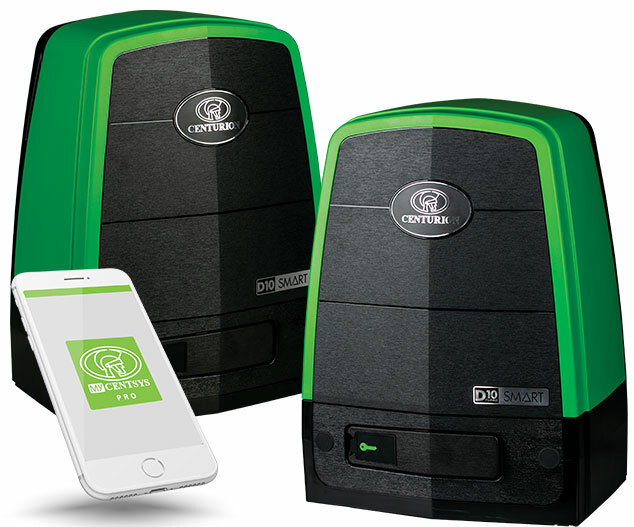

SMART hardware and SMART connectivity provide the best experience for installers
More space and dedicated accessory tray for complementary solutions such as GSM devices
Intelligent theft and break-in protection with an integral vibration sensor and patented theft-deterrent cage
Die-cast aluminium gearbox coupled with a high-torque DC motor built for speed and performance
Uncompromising security, uninterrupted convenience with 24V battery backup
Instant access to advanced, in-app diagnostics and logs, monitoring system health in real time
Accurate and safe position control incorporating reliable Hall Effect technology

Technical Specifications:

	D10-SMART	D10 TURBO-SMART
Input voltage	90V - 240V AC +/-10% @ 50Hz ¹	90V - 240V AC +/-10% @ 50Hz¹
Current consumption (Mains)	250mA	250mA
Battery charger current output	1.8A @ 27.4V +/-1%	1.8A @ 27.4V +/-1%
Maximum number of operations per day	750 ^{3, 6}	750 ^{3, 6}
Duty cycle - Mains present^{2, 3}	45%	25%
Motor voltage	24V DC	24V DC
Motor power supply	Battery-driven (Standard Capacity - 2x 12V 7.2Ah)	Battery-driven (Standard Capacity - 2x 12V 7.2Ah)
Current consumption (motor at rated load)	8A	10A
Input / Output sink currents (Max accessory current draw)
I/O 1-4	100mA (12/24V)	100mA (12/24V)
I/O 5 and 6	3A (12/24V) 10sec Pulse	3A (12/24V) 10sec Pulse
Motor push force - starting	40Kgf	24Kgf
Motor push force - rated	30Kgf	18kgf
Gate mass - maximum	1000Kg	250kg8
Gate length - maximum	50m	50m
Gate speed (varies with load)⁴	Up to 26m/min⁴	Up to 45m/min⁸
Manual Override	Lockable with key release	Lockable with key release
Drive Pinion	17T Module ⁴	20T Module ⁴
Operations in standby with 2x 7Ah batteries	Power saving (15m/min 15kgf) Normal (26m/min 15kgf)	Power saving (15m/min 9kgf) Normal (45m/min 9kgf)
Half day^{2, 5, 6}	118 \| 63	189 \| 130
Full day^{2, 5, 6}	93 \| 50	150 \| 104
Collision Sensing	Electronic	Electronic
Operating temperature range	-15°C to +50°C	-15°C to +50°C
Onboard receiver type	Code-hopping multichannel receiver with selective add and delete	Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity	1500 Remotes⁷	1500 Remotes⁷
Receiver frequency	433.92MHz	433.92MHz
Degree of protection	IP54	IP54
Mass of unit packed (with standard kit, but excl. rack and battery)	13Kg	13.5Kg
Packaging dimensions (with standard kit, but excl. rack and battery)	350mm wide x 282mm deep x 470mm high	350mm wide x 282mm deep x 470mm high
