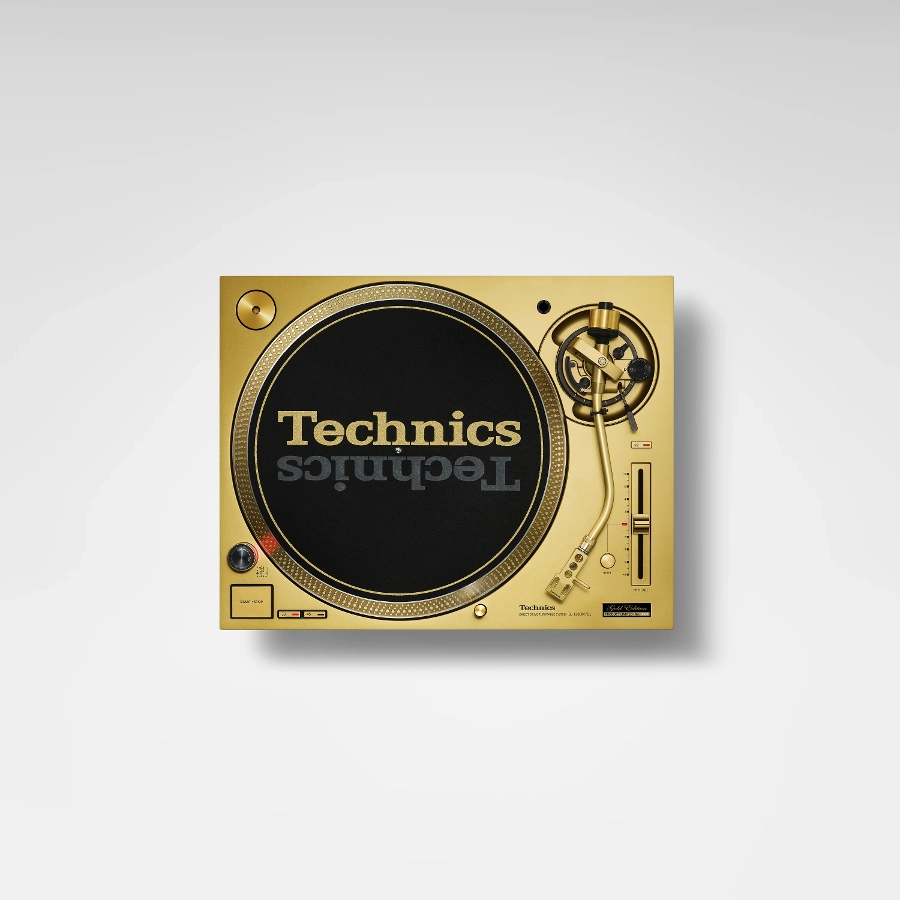

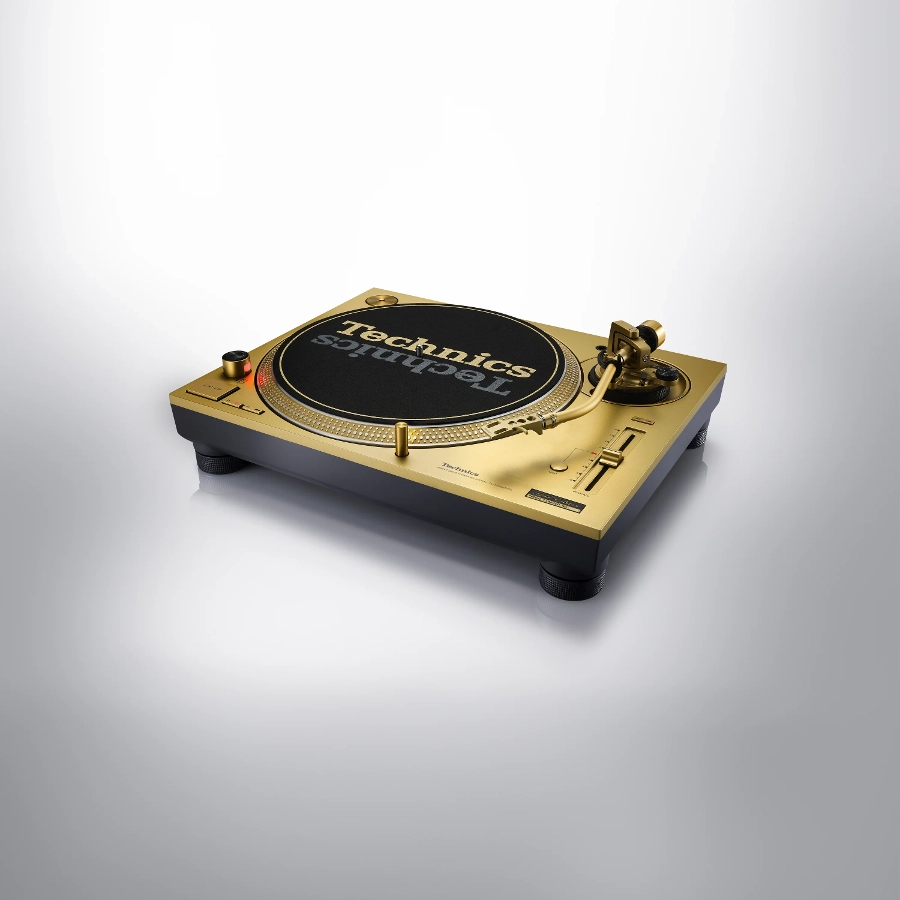

SL-1200M7GLE - Technics SL-1200MK7 Gold Limited Edition
|
|
Features
- Gold Edition Design Featuring Serial Number Plate, Tonearm and Slipmat
- Coreless Direct Drive Motor for Stable Rotation
- High Sensitivity Tonearm for Reliable Performance
- High-rigidity Cabinet and High-damping Insulator
- 78 rpm Speed for a Wider Range of DJ Styles
Specifications
Specifications
Drive Method
Direct Drive
Motor
Brushless DC motor
Turntable Speeds
33 1/3, 45 rpm (with switch 78 rpm)
Adjust Range
±8%, ±16%
Starting Torque
0.18 N・m / 1.8 kg･cm
Build-up Characteristics
0.7 s. from standstill to 33 1/3 rpm
Wow and Flutter
0.025% W.R.M.S.
Turntable Platter
Aluminum diecast
Diameter：332mm
Weight：Approx. 1.8kg (Including slipmat and slipsheet)
Tonearm Section
Type
Universal
Static Balance
Effective Length (from the tonearm pivot to the stylus)
230mm
Overhang
15mm
Tracking Error Angle
Within 2° 32' (at the outer groove of 30cm(12") record)
Within 0° 32' (at the inner groove of 30cm(12") record)
Offset Angle
22°
Arm Height Adjustment Range
0 - 6mm
Stylus Pressure Adjustment Range
0 - 4g (Direct Reading)
Headshell weight
Approx. 7.6g
Applicable Cartridge Weight Range(including Headshell)
5.6 - 12.0g
14.3 - 20.7g (including headshell)
Cartridge Mounting Dimension
-
Head Shell Terminal Lug
1.2mmφ 4-pin terminal lug
Bundled Cartridge
Model Name
-
Built-in Phono Equalizer
Gain
-
RIAA deviation
-
Terminals
Audio Output
PHONO (Pin Jack) x 1
EARTH TERMINAL x 1
General
Power Supply
AC110-240 V, 50 Hz / 60 Hz
Power Consumption
8 W
Approx. 0.2 W (Standby)
Dimensions (W x H x D)
453 x 169 x 353 mm
Weight
Approx. 9.6 kg
Operating temperature range
0℃ to +40℃ (32°F to +104°F)
Operating humidity range
35% to 80% RH (no condensation)
Accessories
Turntable, Slipmat, Slipsheet,
Dust cover,
EP record adaptor, Balance weight,
Head shell,
Screw set for cartridge, PHONO cable,
PHONO earth lead, AC power supply cord,
Owner's Manual
