Reference M-10 Preamplifier
The Reference M-10 is an entirely new, fully discrete, dual mono preamplifier, designed from the ground up. It is the culmination of decades of experience and the constant pursuit of excellence in electronic design.
The Reference M-10 is testament to Plinius’ relentless quest to produce a preamplifier that reveals extraordinary audio detail. At this crucial beginning of the signals journey low value, audio grade resistors are used to minimise noise and, when combined with the adjustable gain feature result in sound without distortion or unnecessary colour, this is pure, powerful sound.

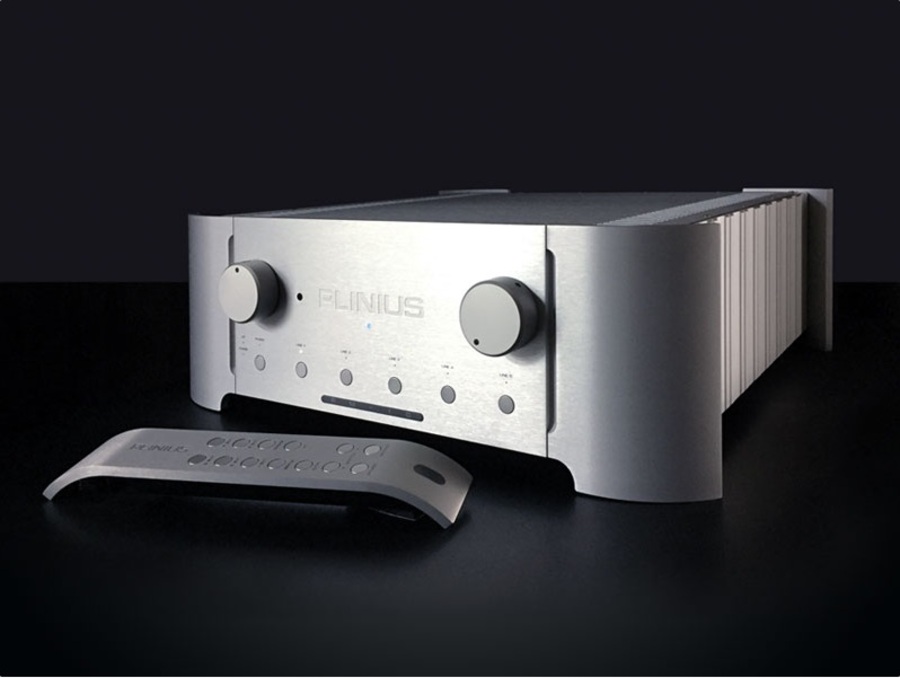

Plinius’ signature aesthetic is still ever present in the external styling of both the dual mono preamplifier and it’s remote. As always, form follows function resulting in the ultimate in design sophistication.
Lovers of high-end audio reproduction will be impressed with the Reference M-10’s uninhibited ability to supply pure detail to the matching Reference A-300 power amplifier. We believe the Reference M-10 can hold its head up amongst the world’s best performing preamplifiers.
Specifications
CONNECTIVITY |
2 x Trigger Out, 1 x Trigger In, 1 x RC5 In |
FREQUENCY RESPONSE |
20Hz to 20kHz +/–0.1dB |
DISTORTION |
<0.001% THD+N |
INPUT |
3 x XLR/RCA selectable, 3 x dedicated RCA, 1 x HT Bypass XLR/RCA selectable |
INPUT IMPEDENCE |
7.5k ohms RCA/Unbalanced, 47k ohms XLR/Balanced |
PRE OUT SOURCE IMPEDENCE |
10 ohms RCA/Unbalanced, 20 ohms XLR/Balanced |
OUTPUTS |
2 x XLR/RCA Pre-Out, 1 x RCA Line Out |
MAXIUM OUTPUT LEVEL |
7V RMS RCA/Unbalanced, 14V RMS XLR/Balanced |
GAIN |
High: 12dB (4x) Low: 0dB (1x) |
DIMENSIONS |
Height: 170mm (6.75") |
