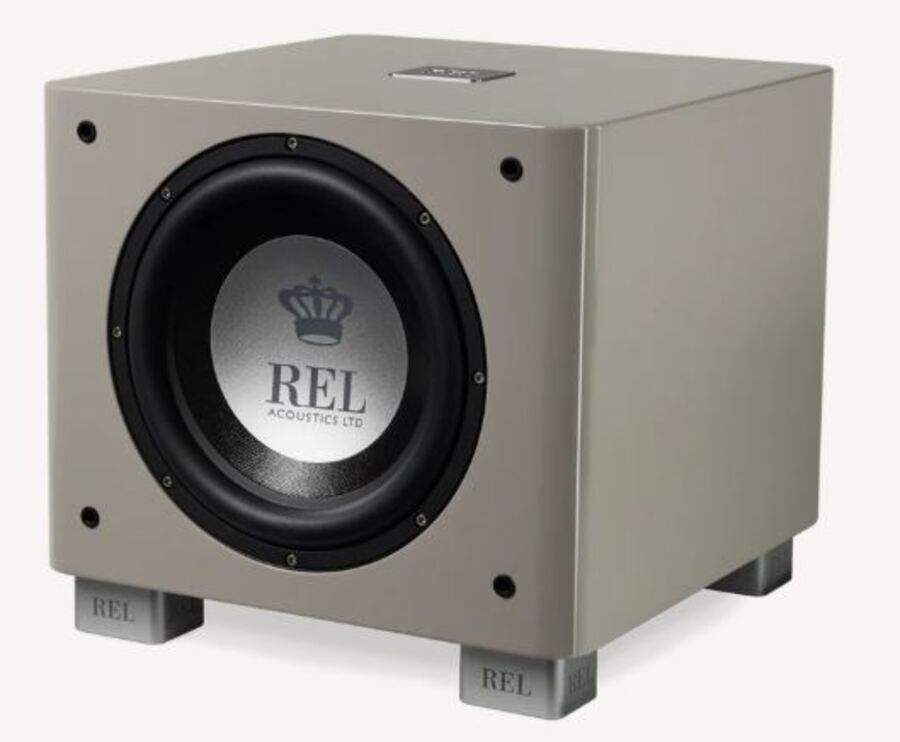

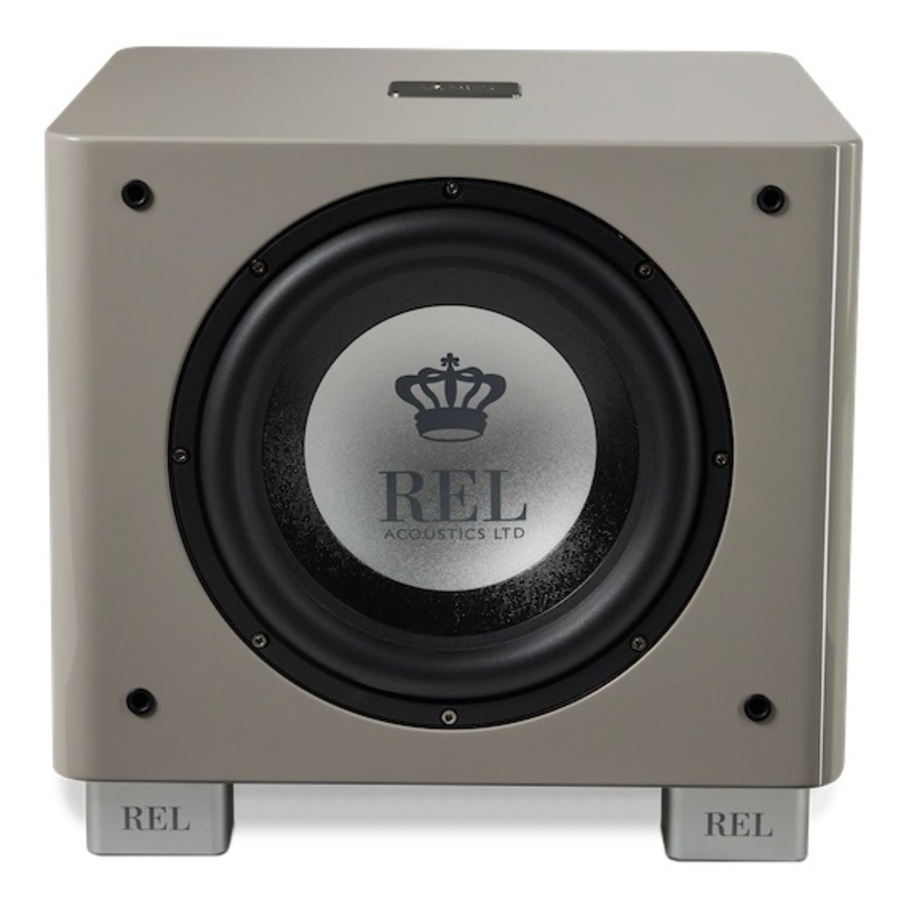

REL-T/9x - REL T/9x Serie T/x 10" 300W
|
|
REL T/9x Serie T/x 10" 300W from New Zealand TV & HiFi Limited delivers deep, fast, musical bass for a true high-end home audio upgrade. Designed as a premium REL subwoofer for stereo and home theatre, it combines a 10" FibreAlloy long-throw active driver with a 10" long-throw passive radiator, powered by a punchy 300W amplifier for effortless low-frequency impact.
Key features:
- Powerful, controlled bass for music and movies
- High-output 10" active driver + 10" passive radiator
- 300W amplification for dynamic performance
- Ideal for audiophile systems and home cinema setups
Information
Bigger Dynamics. Faster Response. Pure REL Musicality.
T/9x delivers powerful, agile bass with expressive dynamics that energize music and theater alike. It brings systems to life with effortless speed and clarity.

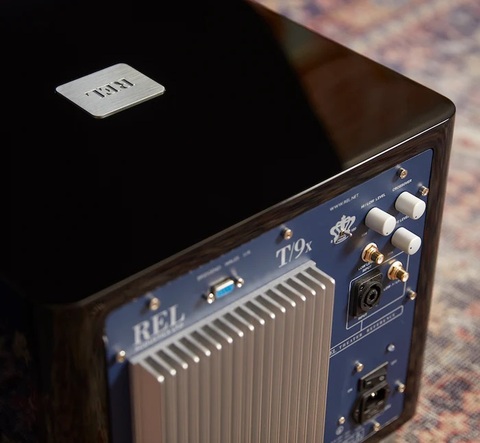

- Rich, expressive dynamics from a 300-watt Class A/B amplifier

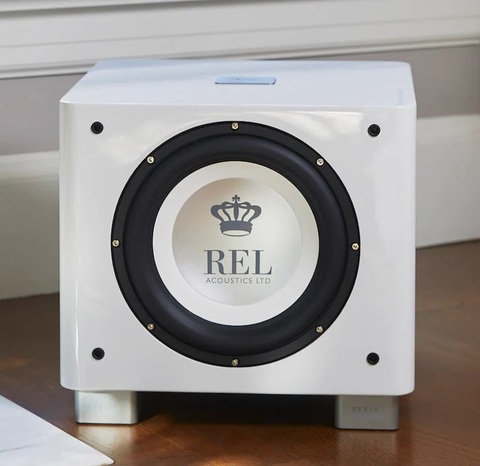

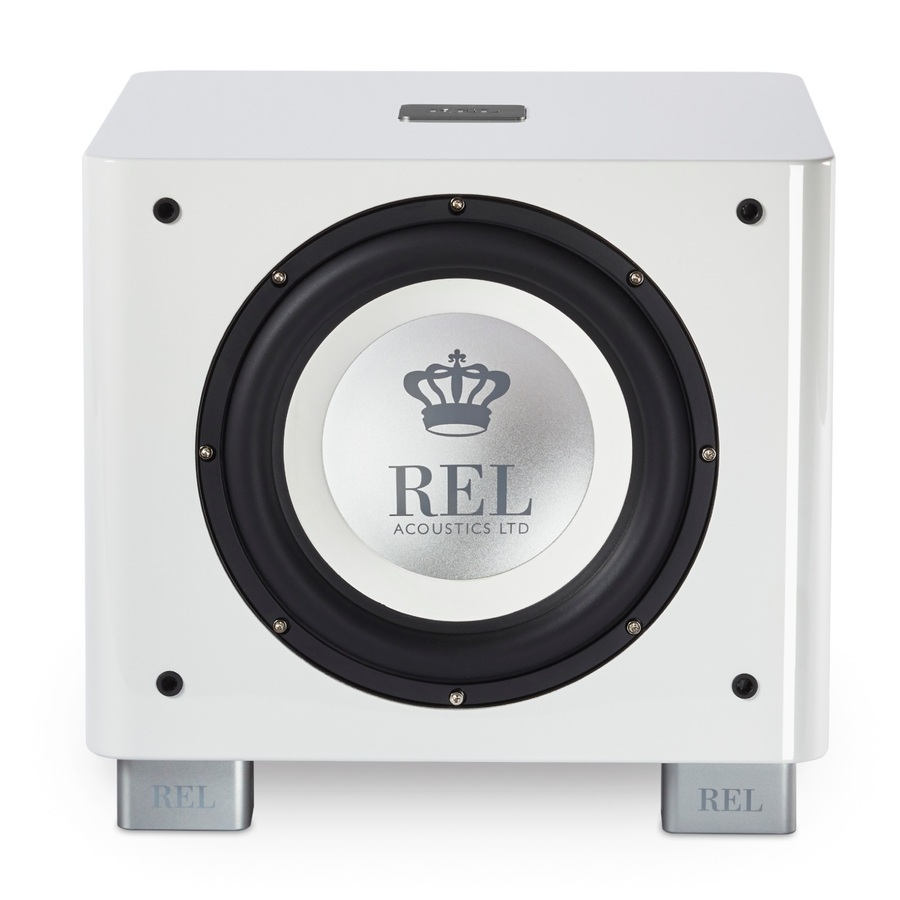

- Fast, accurate bass from a 10" FibreAlloy driver

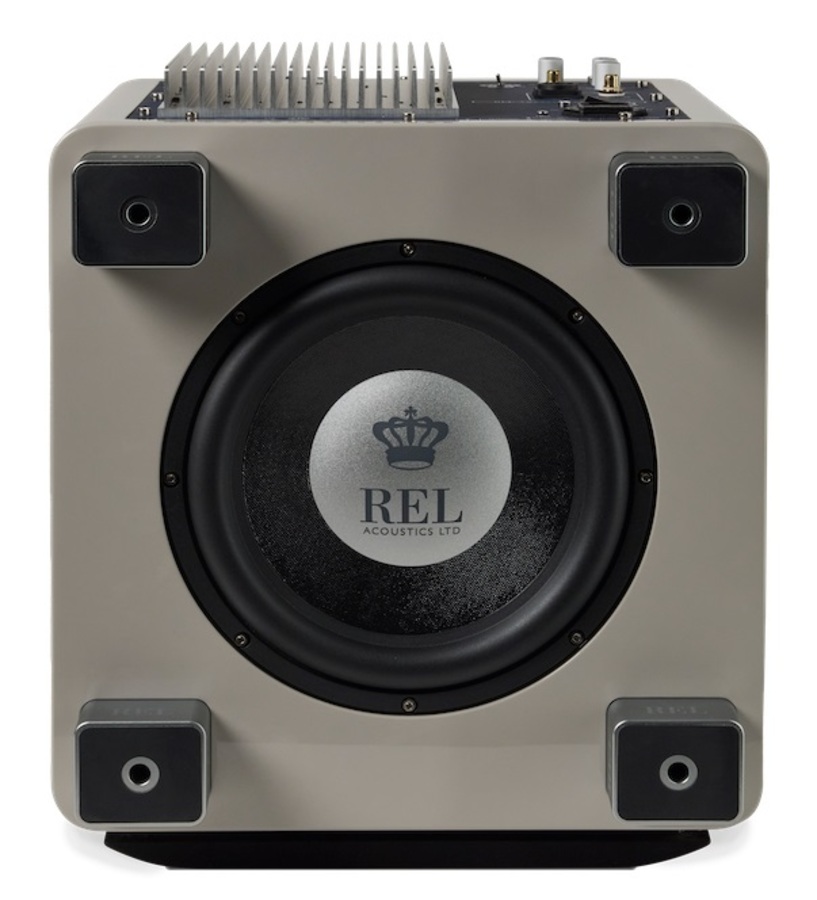

- Extended depth and scale via a 10" down-firing passive radiator
- Home-theater ready with the finesse of a true musical sub
Serie T/9x: Bigger and Better
The job of any range topper for REL is to deliver more of everything, particularly output and dynamics. The 9x is no different in this regard, as it delivers the goods in both music and theatre applications. 9x, however, delivers a level of intimacy, clarity and speed that means there are no longer trade-offs between the sonic balance of smaller models weighed against the power and scale of a model 9.
The all new 9x has even greater output than before, but the headline news is the way it sacrifices nothing in clarity and transparency to achieve this. At this price it opens the pathway for owners of high-performance European floor and stand mounted monitors and smaller panel speakers to enjoy truly full range sound.
Features
- Closed Box, Active & Passive Drivers
- 10" FibreAlloy™ long-throw active driver
- 10" long-throw passive radiator
- 300 Watt Class AB Power Amplifier
- Hi Level, Lo Level & .1 LFE Inputs
- 27Hz at -6dB in room frequency response
- Dimensions (WHD): 370 x 340 x 393 inc feet & controls

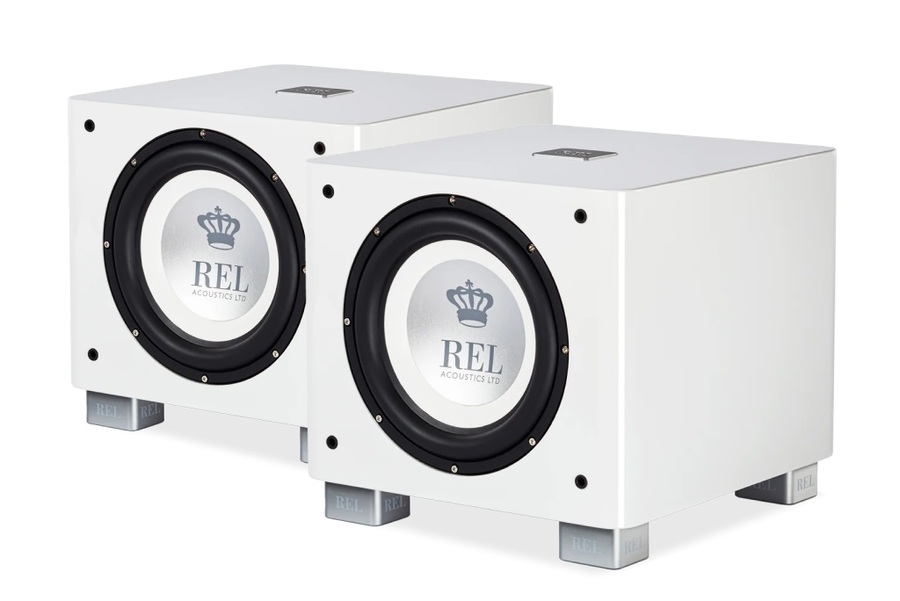

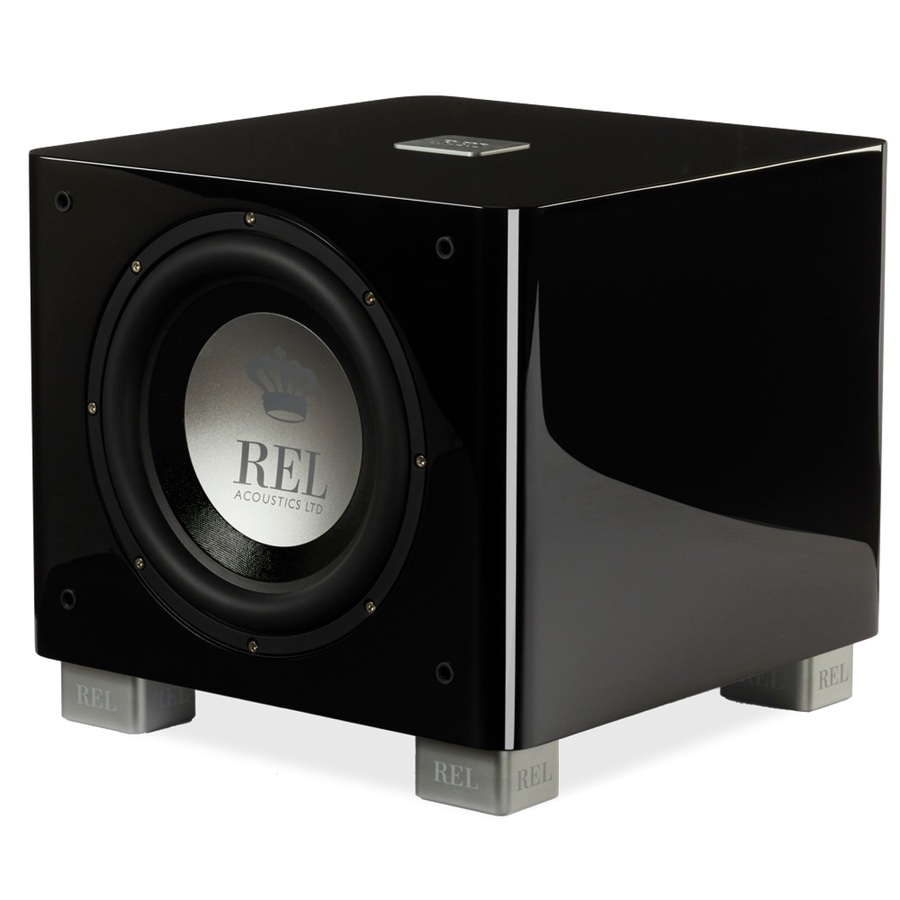

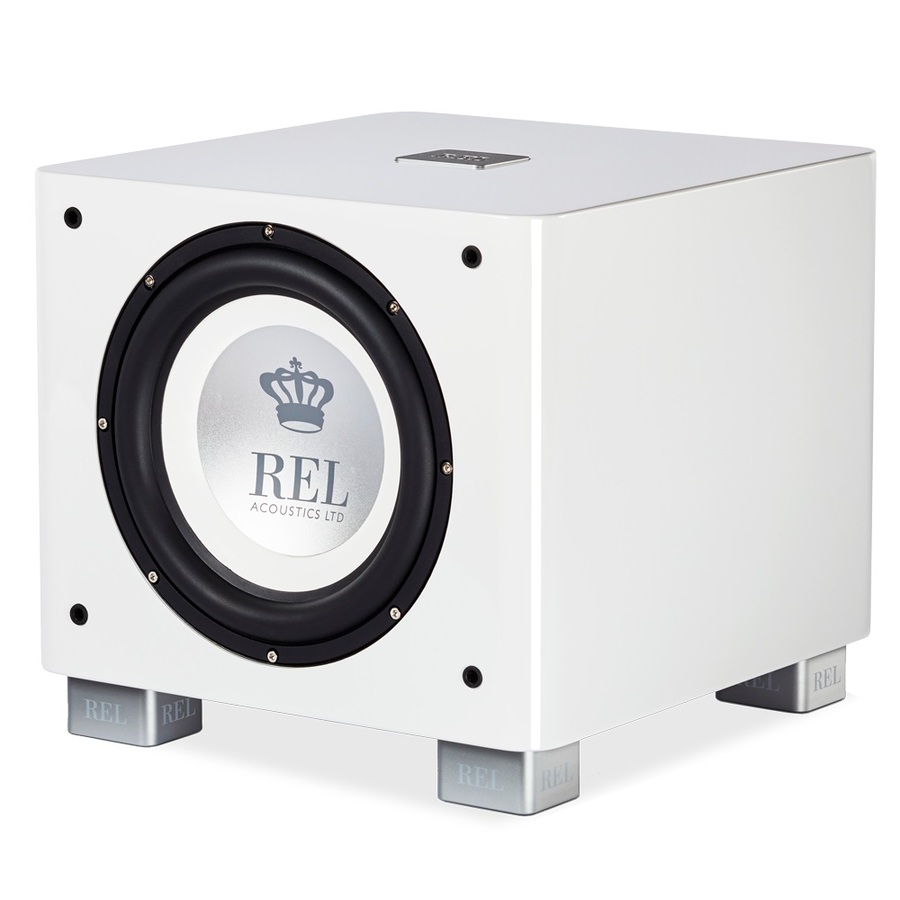

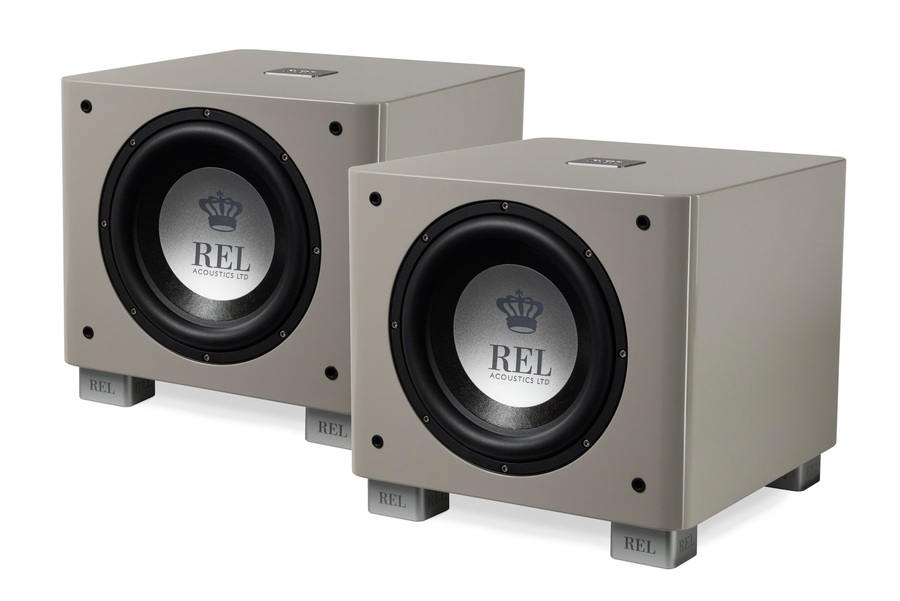

- Available in High Gloss White, Black or Grey
Specifications
Technical Specifications
Type
Front-firing active driver, down-firing passive
Active Driver Size & Material
10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis
Passive Radiator Size & Material
10 in. (250mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis
Low Frequency Extension
-6dB at 27 Hz Low Frequency

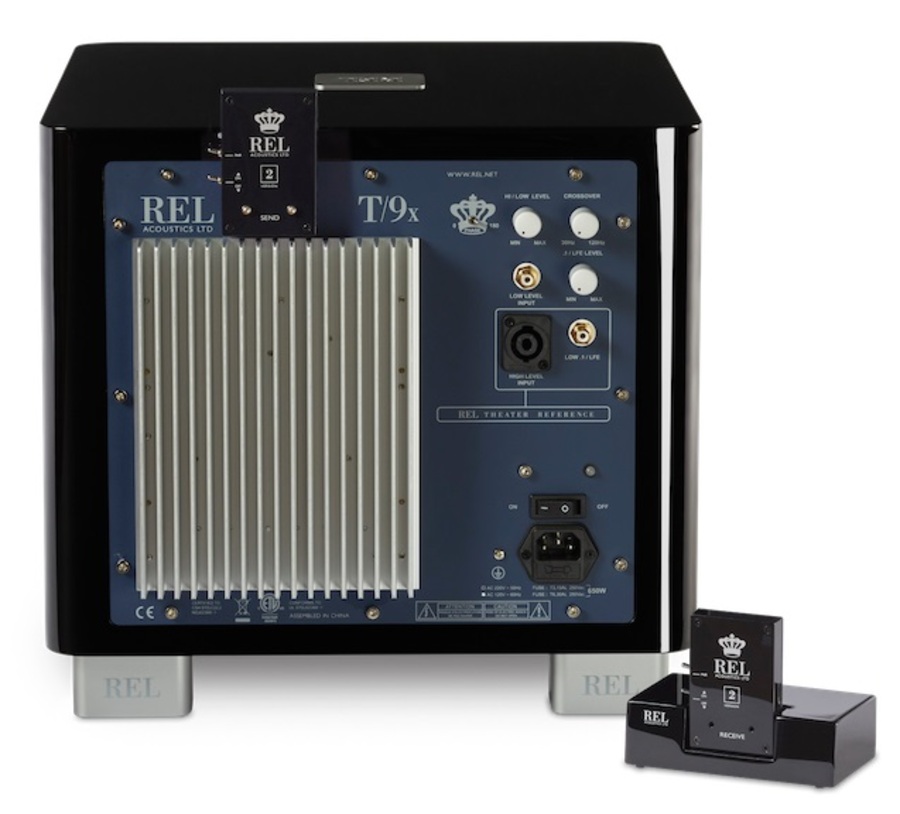

Input Connectors
High Level Neutrik Speakon, Low Level (1) RCA, (1) LFE RCA
Output Connectors
N/A
Power Output
300 watts (RMS)
Amplifier Type
Class A/B
Wireless Capability
REL Arrow (sold separately)
Dual Parametric Filter
N/A
Finish
Piano Black Lacquer, Gloss White Lacquer 5 coats
Protection System
Fully Electronic Set Safe
Yes
D.C. Fault
Yes
Output Short
Yes
Mains Input Voltage
220-240 volts, 110-120 volts for certain markets
Fuses
3.15 Amp semi delay 230 volts operation, 6.3 Amp semi delay 115 volts operation
Supplied Accessories
Mains Lead
Yes
Neutrik Speakon
Yes (10 Meters Nominal)
Interconnect
-
User Manual
Yes
In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice.
What's in the box
- Serie T/9x Subwoofer

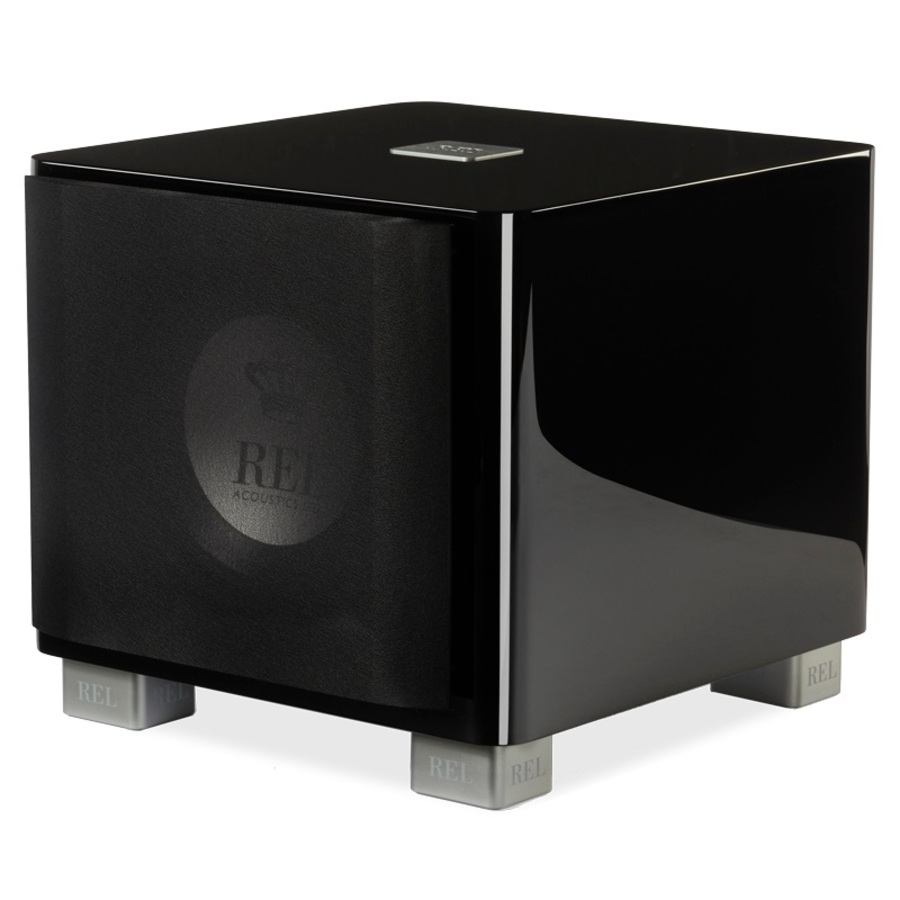

- Grille
- 6' AC Power Cord
- 32' Neutrik Speakon cable
- User Manual & Warranty Information
