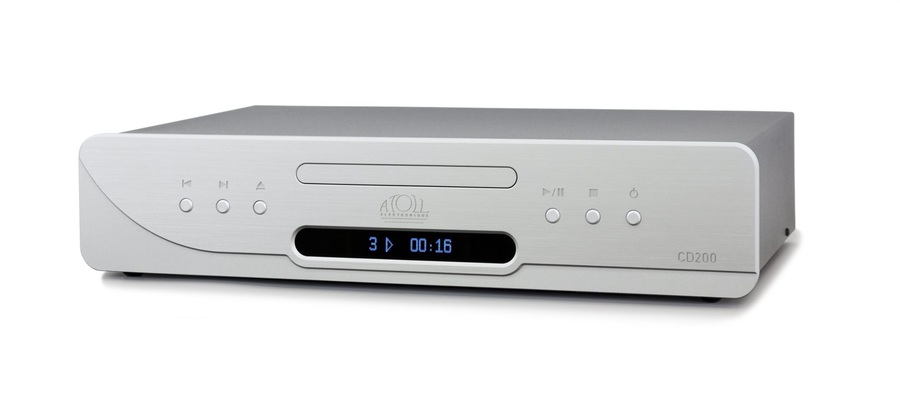

CD200EVO - Atoll CD200 Evolution CD Player

• 8mm brushed aluminum front panel.
• 10 regulated power supplies, including one specifically designed for low noise for the converter.
• Linear power supply for digital stages with dedicated 30 VA transformer.
• Separate 10 VA transformer for audio stages.
• 1.6 VA transformer (low power consumption).
• Original TEAC central CD mechanism (latest generation).
• Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.

• Double-sided printed circuit boards with nickel/gold finish.
• BURR-BROWN PCM1792A Converter:
             – 24 bits/192 kHz.
             – Dynamic range: 129 dB.
             – Signal-to-noise ratio: 129 dB.
• Low power OLED display.
• CD-Text display.
• Class A biased discrete component differential audio output stages.
• ATOLL global remote control.
• Optional 24-bit/192 kHz digital card for all Evolution series CD players.

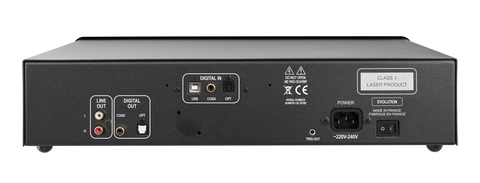

CD200 EVO with optional NUM DC200 card.

CONNECTIVITY

Exits

• 1 Analog line output (right and left).
• 1 Coaxial digital output (to a D/A converter).
• 1 Optical digital output (to a D/A converter).
• 12V Trigger output.

Optional digital map:

• 1 USB input (type B).
• 1 Digital input (Coaxial).
• 1 Digital input (Optical).

DC200 DIGITAL OPTION BOARD

CD players from the Signature range can be optionally fitted with a card with three digital inputs:

1 Coaxial input (S/PDIF – 24 bits/192 kHz).

1 Optical input (S/PDIF – 24 bits/192 kHz).

1 Synchronous USB-B input: 16 bits to 32 bits PCM stream up to 768 kHz asynchronously (USB interface: XMOS with a program specifically developed for ATOLL).

XMOS SPECIFIC DRIVER

Important: Using the USB input of the optional DAC board requires downloading a specific driver for Windows computers. This can be downloaded below. This driver is not necessary under MAC and Linux.

Download XMOS SPECIFIC DRIVER here:
