● Long Lasting Material
With four layer structure including a strong Fiberglass layer screen distortion is minimized to less than 1% stretch and ensures a long lasting and flat projection surface.
● Sophisticated Images
Engraved with optical microgroove on the surface, with resolution more than 125 line pairs per mm, which ensures the sharpness of the projected images
● Color Accuracy
The reflected light is evenly distributed with less than 60K difference between incident angle and reflection angle
● Wide Color Range
Ambertec Projection Screens offer a unity gain which enables the display of high contrast images while maintaining the color accuracy and color range and provides a more vivid image experience for the viewer.
|
|
|
|
|

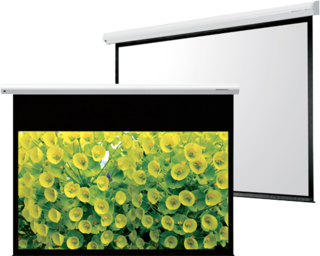

Integrated Motorized Screen
In-built with IR control function and designed with interfaces for wall switch and external central control to control the screen remotely and intelligently.
|
Universal Bracket
Suitable for either wall mount, ceiling mount or ceiling hang. The bracket can slide horizontally at the back of the casing to match different installation positions.
|
Unique Rail Mount
Floating bracket system allows for easy screen alignment
|
Secure It In Place
A single screw locks the floating bracket in place to avoid accidentally moving the screen out of alignment.
|
Ceiling Hung
|
Specification |
||||||||
|
Driving System
|
Format
|
Specification(inch)
|
Viewing Area(WxH)
|
A
|
B3
|
Casing Size
(LxHxW) |
Net/Gross Weight(Kg)
|
Power (voltage220v)
|
|
Intelligent |
4:3 |
84
|
1710×1280
|
1524
|
80
|
1960×100×90
|
10.5 / 13.2
|
115W
|
|
100
|
2030×1524
|
1767
|
80
|
2280×100×90
|
13.8 / 16.7
|
115W
|
||
|
120
|
2400×1800
|
2047
|
80
|
2650×100×90
|
15.3 / 18.4
|
115W
|
||
|
150
|
3050×2286
|
2589
|
80
|
3348×143×135
|
29.4 / 33.5
|
115W
|
||
|
180
|
3620×2715
|
3018
|
80
|
3920×143×135
|
38.0 / 44.8
|
250W
|
||
|
16:9 |
84
|
1710×961
|
1949
|
800
|
1976×100×90
|
10.3 / 13.1
|
115W
|
|
|
92
|
2030×1145
|
1948
|
650
|
2280×100×90
|
13.8 / 17.3
|
115W
|
||
|
100
|
2214×1245
|
1948
|
550
|
2464×100×90
|
14.5 / 17.3
|
115W
|
||
|
106
|
2340×1320
|
1973
|
500
|
2584×100×90
|
15.1 / 17.5
|
115W
|
||
|
120
|
2656×1494
|
2047
|
400
|
2906×100×90
|
14.3 / 17.3
|
115W
|
||
|
133
|
2945×1656
|
2179
|
300
|
3243×143×135
|
29.2 / 33.8
|
115W
|
||
|
150
|
3320×1867
|
2390
|
300
|
3620×143×135
|
34.1/ 40.2
|
250W
|
||
|
180
|
3984×2240
|
2763
|
300
|
4284×143×135
|
42.7 / 51.5
|
250W
|
||
|
200
|
4428×2491
|
3016
|
300
|
4730×143×135
|
58.0 /
|
250W
|
||
|
16:10 |
92
|
1982×1239
|
2042
|
650
|
|
13.8 / 16.7
|
|
|
|
106
|
2283×1427
|
2080
|
500
|
|
15.1 / 17.5
|
|
||
|
120
|
2585×1615
|
2168
|
400
|
|
14.3 /17.3
|
|
||
Note:
1. Unremarked measurements are default to be MM.
2. Side borders B1 are both 50mm.
3. For recess-ceiling installation design,the length/width/heigth of the groove need to be added by 100mm/60mm/60mm respectively.
4. Above parameters could be changed due to product improvement.
5. RED text items are indent special order only
 |
 |
Standard Accessories
Optional Accessories
Power Relay
The emitter is installed at the projector end and the receiver is connected to the "EXT IR" plug on the screen, when the projector is triggered on/off the screen would open/close automatically.
RS485 Wall Switch
RS485 Wall Switch is an external screen controller, integrated with RS485 and USB interface, it can be connected to the "EXT CTRL" slot on the screen end to control the screen.
|
Option 1: IR Remote Control Control and Micro-adjust the screen with 8 meters effective range  |
Option 2: Manual Switch Just under the casing we provided a switch to control the screen manually
|
|
|
Option 3: Wall Switch (Optional) Connect the 6P6C plug of the wall switch to the "EXT CTRL" interface, user can choose net cable when the control distance is too long
|
Option 4: Intelligent Control Interface "EXT CTRL" Interface can both connected to a wall switch or central control system through RS485 protocol
|
