Gold Note PA10 Power Amp
  • Gold Note PA10 Power Amp
Gold Note PA10 Power Amp
Price:
NZ$ 3,699.00 including GST

NZ$ 3,216.52 excluding GST
PA-10
Rating:
( 0 reviews )
Colour:
  • BLACK Brushed Aluminium
  • SILVER Brushed Aluminum
  • GOLD Brushed Aluminium
Purchase Qty:



OUTSTANDING PERFORMANCE

The PA-10 is the new power amplifier of the Gold Note Series 10 that can play either in Stereo or Mono (bridged) mode. Characterised by the greatest build quality and an impressive variety of functions, the PA-10 is an incredibly versatile power amplifier suitable for any modern High-End audio system. The aesthetic of the chassis is derived from the Series 10 products integrating the PA-10 seamlessly into a coherent concept inspired by the world- famous Italian style and Gold Note modular design.

The power amplifier is composed of a high-quality chassis made from heavy aluminum panels and accurately selected audio components. The idea behind the PA-10 was to design a power amplifier compact in size but capable of astounding power capable of driving any kind of loudspeakers. The new great proprietary technology developed for the PA-10 allows the amplifier to act like a Class A amplifier doubling its power while lowering the speaker impedance. It features a 75Watt @ 8Ω, 150Watt @ 4Ω and 300Watt @ 2Ω in stereo mode, and an amazing 300Watt @ 8Ω, 600Watt @ 4Ω in mono mode.

SMART FUNCTIONS

The PA-10 distinguishes itself with its great versatility, applying a lot of innovations Gold Note is now well known for. Starting from the adjustable Damping Factor, it allows a perfect pairing to any kind of speakers, from the most difficult to high-sensitivity and mini monitor, always providing the best matching.

The Bridge-Tied-Load technology (Mono mode) makes the PA-10 a super high-power amplifier able to virtually drive any speaker on the market. The XLR stereo output enables the PA-10 to be configured in series for convenient high quality multi-room solutions, made easy by the automatic On/ Stand-by mode based on the audio signal received.

The PA-10 comes with both RCA and XLR inputs. It optionally offers the possibility to be simultaneously connected to two different sources like the Gold Note PH- 1000 phono stage with volume control and the DS-10 Streaming DAC.

More user friendliness is given with the in-house In/Out GN Link technology which allows putting the amplifier in master-slave-mode with other units presenting the same feature.

THE SMART AND COMPLETE DIGITAL SOURCE

Take a PA-10, add a DS-10 and there you have it – a compact High-End system designed for digital music. Just add your loudspeakers and you’re ready to go.

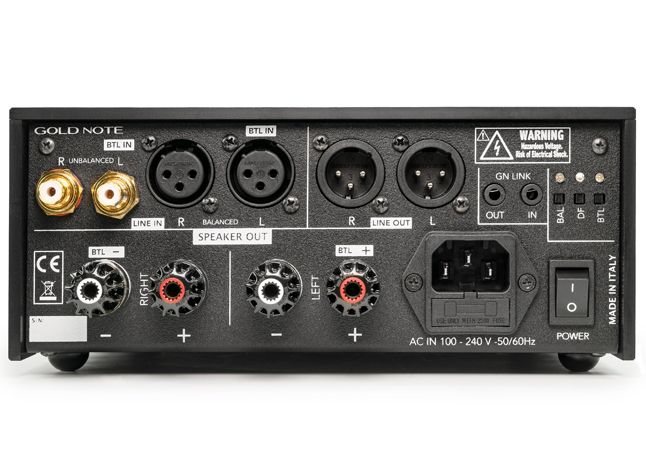

AUDIO INPUTS

1x RCA Stereo unbalanced

1x XLR Stereo balanced

INPUT SENSITIVITY

1,4V RMS on RCA and XLR

INPUT IMPEDANCE

13KΩ RCA/XLR

1x RCA Stereo unbalanced

1x XLR Stereo balanced

INPUT SENSITIVITY

1,4V RMS on RCA and XLR

INPUT IMPEDANCE

13KΩ RCA/XLR

AUDIO OUTPUTS

Speaker terminals: Gold plated binding posts

POWER OUTPUT

75/150W @ 8/4Ω per ch. in stereo to 600W @ 4Ω per ch. in mono (BTL)

FREQUENCY RESPONSE

10Hz-30kHz at +/-1dB

TOTAL HARMONIC DISTORTION (THD)

0,05%

DAMPING FACTOR

Selectable HIGH/LOW

DIMENSIONS

200mm W | 80mm H |  260mm

Kg. 4 – net

Kg. 5 – boxed
