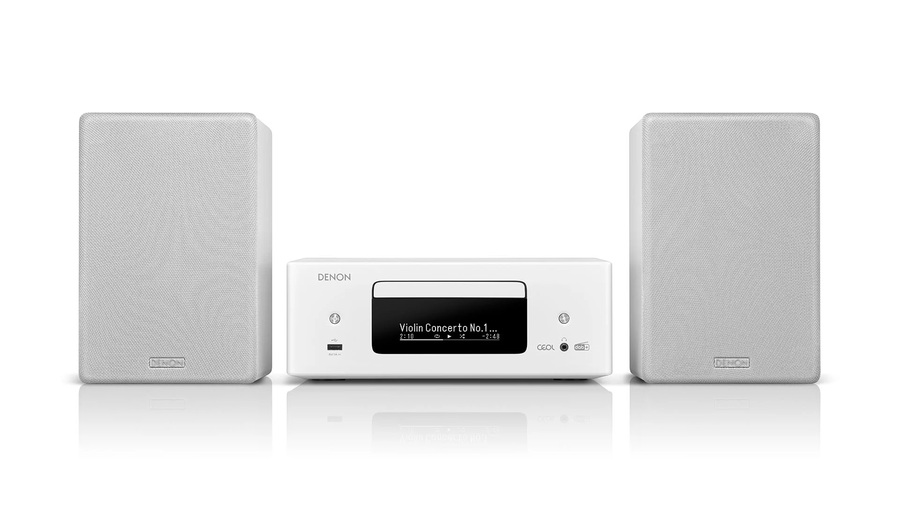

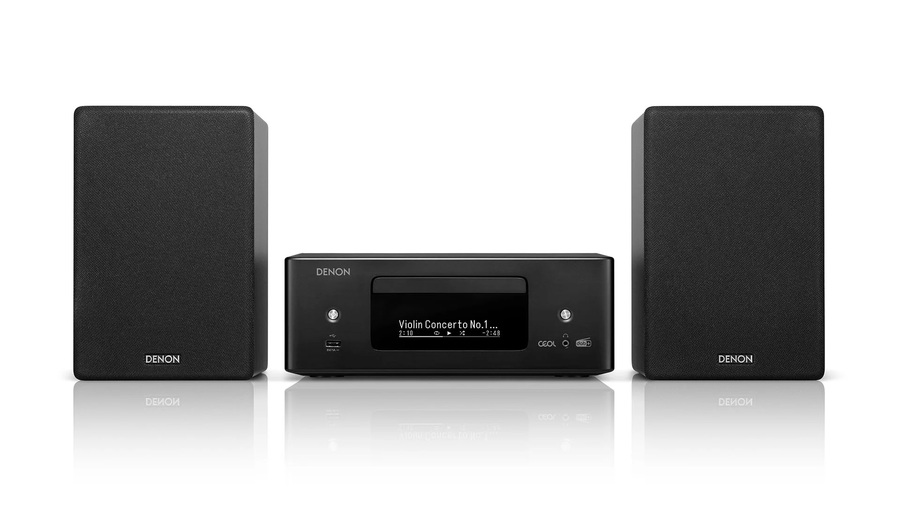

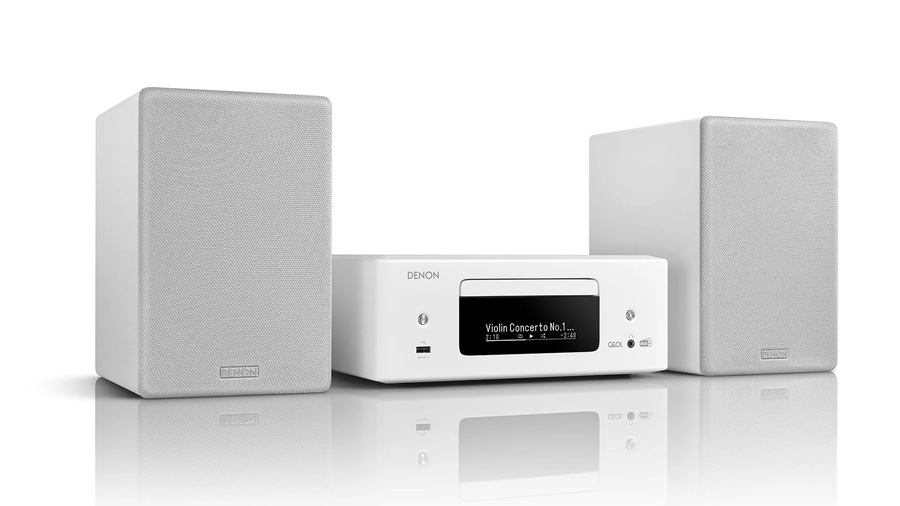

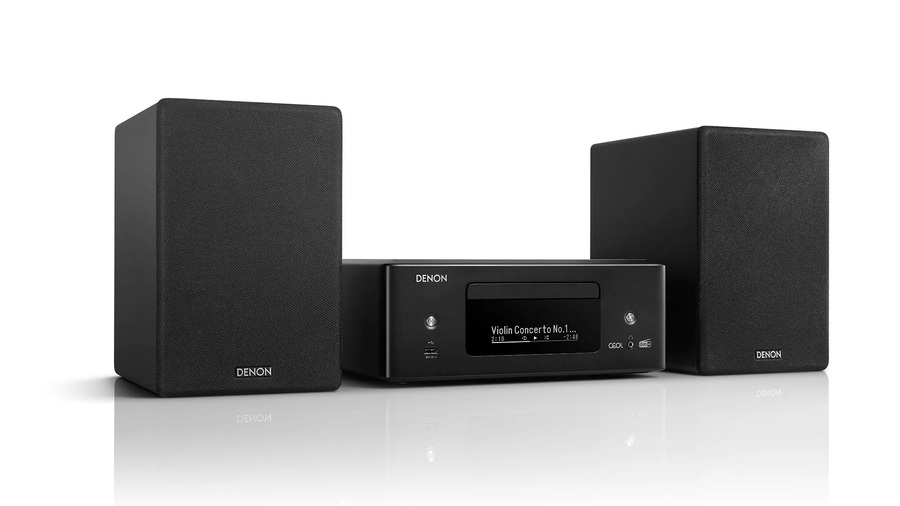

CEOL N12DAB

Superb sound from an elegant, compact package. With a radio tuner, CD player, and HEOS® Built-in, plus HDMI ARC for TV connection, phono input, and audio pre-out, it’s the perfect audio hub for a small living space.

Design all-in-one system with CD player, DAB/FM radio, HDMI ARC and HEOS® Built-in streaming.

Key Features

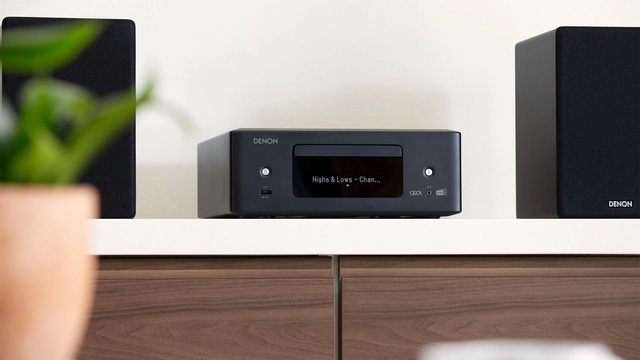

Compact, elegant design
Power for small spaces
HDMI ARC
Stream music
Premium Hi-Fi experience
Phono equalizer

Wireless Streaming

Stream music from nearly unlimited sources via HEOS Built-in, Airplay, or Bluetooth®.

Simple TV Connection

With an HDMI ARC input, connect directly to your television with a single HDMI cable.

Power for small spaces

Two channels with up to 65W of power (at 6 ohms) to fill a small room with high-fidelity sound.

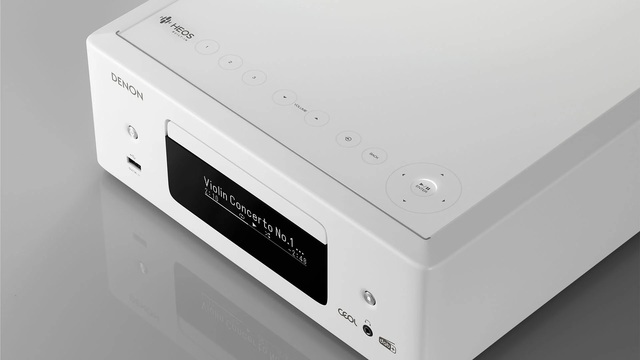

Quick select buttons

With three Quick select buttons, you can easily access your favorite sources or streaming playlists when you want - without the hassle of searching.

Features

High-Quality Power Output	2 x 65 W
CD Compatibility: CD / CD-R/RW / WMA / MP3	Yes, Yes, Yes, Yes
Tuner: FM/AM	Yes, Yes
Phono MM Input	Yes
Network Audio Streaming	Yes
Spotify Connect/Tidal/Deezer/others	Yes, Yes, Yes, Yes
Amazon Prime Music/Pandora	Yes, Yes
AirPlay 2	Yes
Roon Tested	Yes
Internet Radio	TuneIn
HEOS Multi-Room and Streaming	Yes
Voice Control —Works with Amazon Alexa	Yes
Auto Power On by Optical Input Signal	Yes
TV Remote Learning	Yes
Quick Select Buttons	Yes
Bluetooth/aptX/NFC	Yes, No, No
Bluetooth Headphone Transmission	Yes
USB Audio: Front/Rear	Yes, No
USB-A: DSD/WAV/FLAC/AIFF/ALAC	5.6, 192, 192, No, 192
Ethernet/Wi-Fi	Yes, Yes
WiFi Setup: WPS/Wi-Fi Sharing	Yes, Yes
Lossy Formats: MP3/WMA/AAC	Yes, Yes, Yes
Lossless Formats: FLAC HD/ALAC/WAV/AIFF/DSD	Yes, Yes, Yes, No, Yes
Gapless Playback	Yes (FLAC, WAV, DSD)
Tone Control: Bass/Treble/Balance	Yes, Yes, Yes
Low Noise OELD Display	3 line
Clock	Yes
Sleep Timer	Yes
Programmable Timer: Once/Daily	Yes, Yes

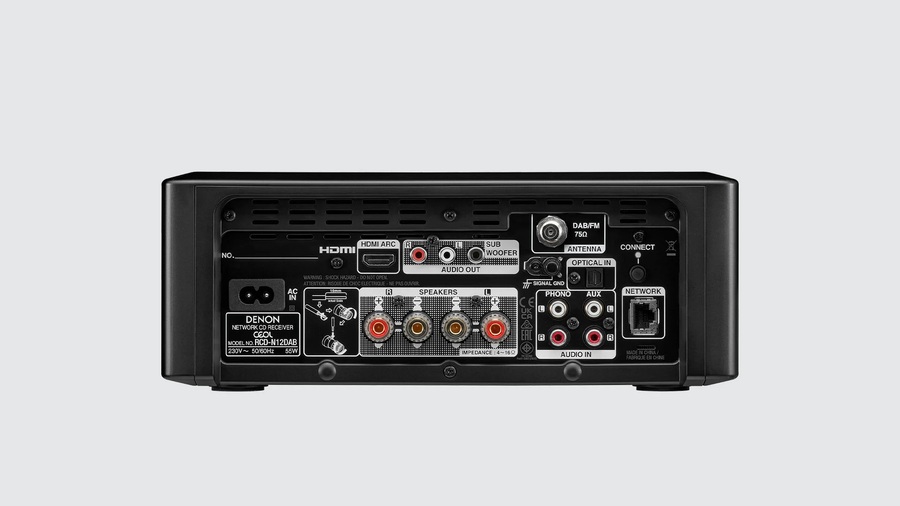

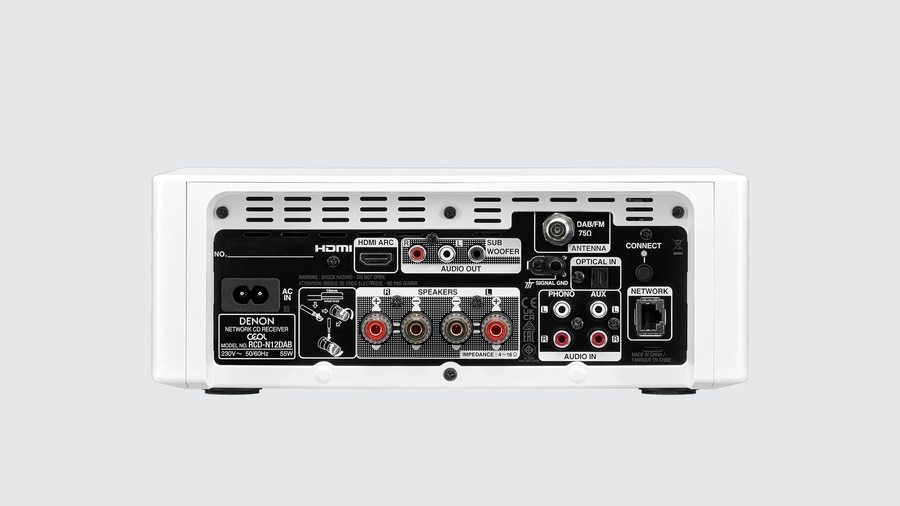

Inputs Output

Analog In/Out	2 (AUX, PHONO MM) / No
Digital Optical In/Out	1, No
HDMI ARC Input	Yes
Subwoofer Pre-Out	Yes
Main Pre-Out	Yes
Speaker Terminal: Push Type, Screw	No, Yes
Headphone Out	Yes

Specifications

AUDIO SECTION (ANALOG IN)
Power Output (4 ohms, 1 kHz, 0.7% THD)	2 x 65W
Number of Channels	2
Freq. Response (Analog In)	10 Hz–40 kHz
Signal-to-Noise Ratio (Audio)	90dB
Input Sensitivity/Impedance (Analog In)	200mV / 30 kohms
Total Harmonic Distortion (Audio)	0.1 (1 kHz/5W/ 4 ohms)
AUDIO SECTION (PHONO (MM))
Freq. Response (Phono)	20Hz–20kHz (RIAA deviation)
Signal-to-Noise Ratio (Phono)	74dB
Input Sensitivity/Impedance (Phono)	2.5mV / 47 kohms
TUNER SECTION FM
Frequency Range FM	87.5–108 MHz
Signal-to-Noise Ratio (Mono/Stereo) FM	70 / 70 dB
Total Harmonic Distortion (Mono/Stereo) FM	0.4 / 0.4%

General

Available Colors: Black/White	Yes / No

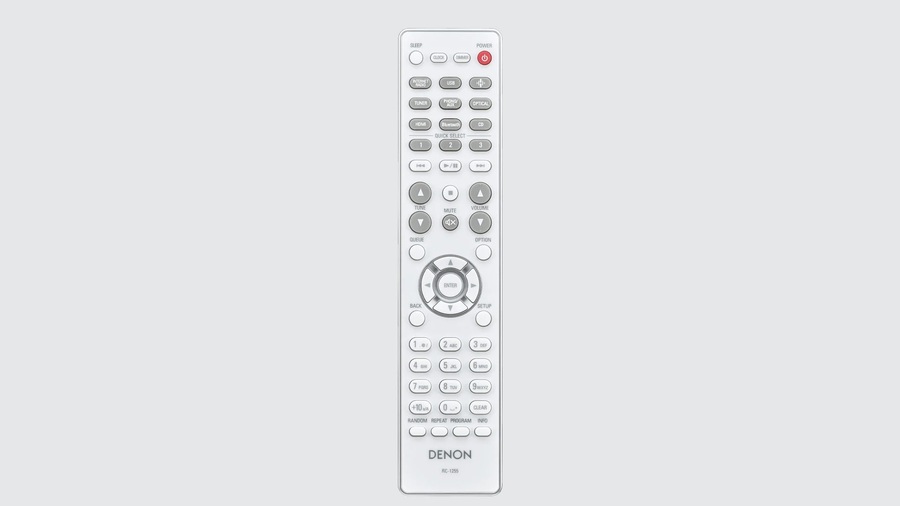

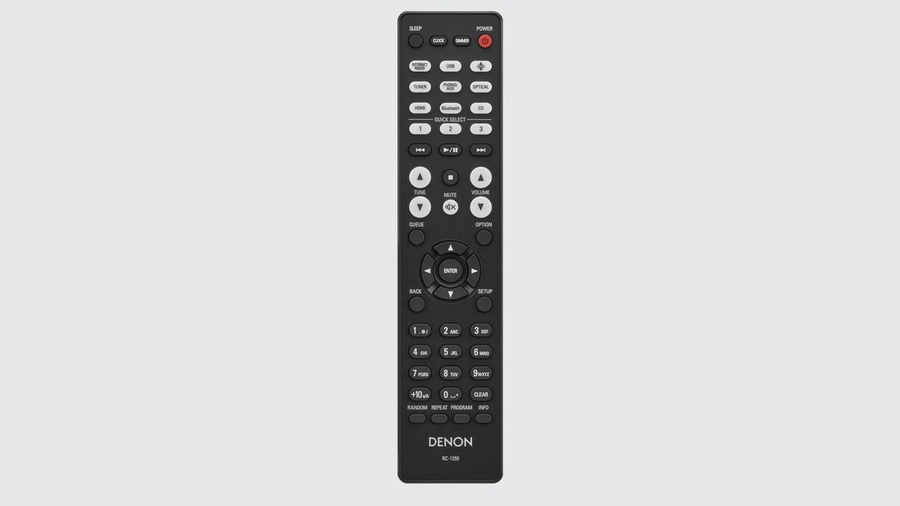

Remote Control	RC1255
Power Consumption in W	55
Standby Consumption in W	0.4
Maximum Dimensions (W x D x H) in Inches	11 1/8 x 11 59/64 x 4 1/4
Weight in lbs	7 lbs, 8 oz
Carton Maximum Dimensions (W x D x H) in Inches	15 5/16 x 13 3/16 x 9 1/16
Carton Weight (inc. product) in lbs	10 lbs, 9 oz
What's in the Box	Main unit, remote control, batteries,HDMI cable, DAB Antenna, AC cord, quick start guide
