MIPRO-MA505R2DPM3 - MIPRO-MA505R2DPM3 Portable PA 100 Watts
|
|
Information
|

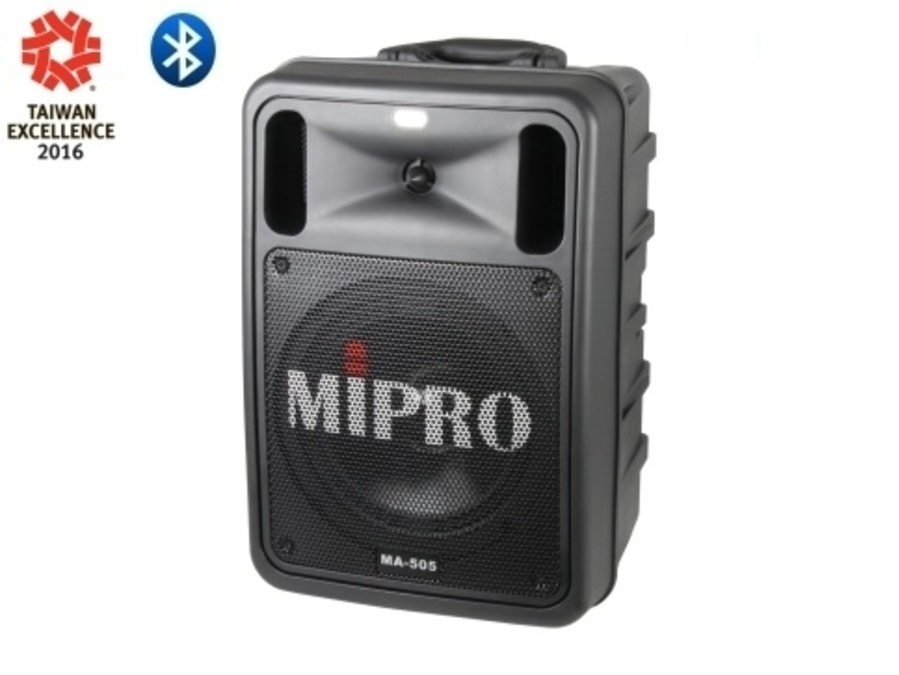

MA-505 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. Built-in digital audio player with optional CD player and interlinking transmitter/receiver package for extended transmission range. It offers an ideal public address solution for medium crowds. Ideal Applications
|
- Robust, rugged enclosure, 145-watt portable PA system with 8 " woofer and 1 " tweeter.
- Up to 4 UHF or ISM band receiver modules and built-in active dual antennas for improved reception distance and stable signal quality.
- Built-in active antenna prevents accidental antenna breakage.
- CD/MP3 player or MP3 player & recorder, plus certified Bluetooth receiver for music streaming.
- Voice Priority mutes music when a wireless mic is used.
- Built-in one-button fade-in alarm/siren for warning.
- Wirelessly link 2 or more MA-505 systems for more sonic coverage (industry’s only MT-91 transmitter module is required).
- Built-in AC-switching power supply for universal usage and fast battery charge.
- Built-in storage compartment for AC power cable.
- Can be powered via AC power or lithium rechargeable battery.
- Weighs only 8.5 kgs | 18 lbs. fully loaded.
- Ideal for medium sized crowds and applications.
Specifications
|
Power Output |
100 Watts (rms) / 4Ω, 145 Watts (max) / 4Ω |
|
|
|
Amplifier |
Class D |
|
|
Sensitivity |
Typical: 91 dB | Maximum: 109 dB |
|
|
T.H.D. |
< 1% |
|
|
Frequency Response |
50 Hz ~ 18 kHz |
|
|
Speaker |
1 " Tweeter & 8 " Woofer |
|
|
Coverage |
H 130° × V 90° |
|
|
Audio Inputs |
Wired: XLR × 1, Ø 6.3 mm (1/4 ") × 1 |
|
|
Bluetooth Connectivity |
Yes |
|
|
Audio Output |
Ø 3.5 mm (1/8 ") mini-jack |
|
|
Extension Speaker |
Unbalanced Ø 6.3 mm (1/4 ") jack |
|
|
Volume |
Individual volume control |
|
|
Controls |
Voice priority, Tone or optional Echo control |
|
|
Alarm Siren |
Siren sound with fade-in mode |
|
|
Storage |
For AC power cable |
|
|
Installation |

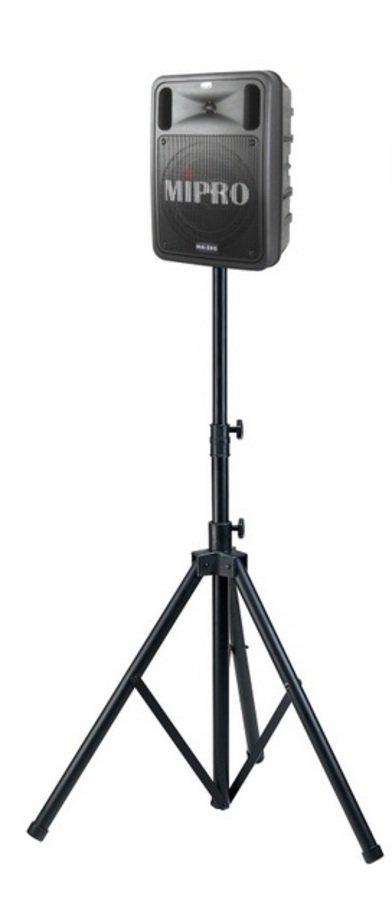

Hand carry, Flat surface or on a speaker stand. |
|
|
Power Supply |
AC: Built-in 100 ~ 240 V AC switching power supply (Max. Power Consumption: 165 W) |
|
|
Charge Time |
4 hours (automatic charging management) |
|
|
Standby Time |
> 8 hours |
|
|
Battery Indicator |
4-level LED indicator (25/50/75/100%) |
|
|
Color |
Black |
|
|
Dimensions (W × H × D) |
275 × 400 × 225 mm / 10.8 × 15.7 × 8.9 " |
|
|
Weight |
Approx. 8.5 kg / 18.7 lbs (MB-35 battery included) |
|
|
Wireless System (optional) |
|
|
|
Built-in Fixed Receiver |
1 or 2 with Scan & ACT sync |
|
|
Detachable Module Receiver |
1 or 2 MRM-70B︱MRM-70W︱MRM-80︱MRM-24︱MRM-58 Scan & ACT sync |
|
|
Frequency Range |
MRM-70B︱MRM-70W︱MRM-80: UHF 480 ~ 934 MHz (country dependent) |
|
|
Preset Channels & Bandwidth |
See Accessories - Receiver Modules |
|
|
Transmitters |
See Accessories - Receiver Modules |
|
|
Microphones |
MM-107︱MM-39︱MM-59 Wired Dynamic Microphone |
|
|
Interlinking Transmitter |
MT-91 module |
|
|
Installation |
Plug-n-play for optional modules |
|
|
Antenna |
Built-in active high efficiency dual antenna |
|
|
Audio Player (optional) |
|
|
|
Model |
CDM-2︱DPM-3 |
|
|
Installation |
Plug-in Module |
|
|
Note |
Refer to actual product in the event of product description discrepancy. |
