WIIM-AMP ULTRA - WiiM Amp Ultra 24bit Music Streamer
|
|
Flagship streaming amplifier built for 24-bit audiophile-grade performance 100W per channel (8 Ω) / 200W per channel (4 Ω)
Price:
NZ$ 698.99 including GST
NZ$ 607.82 excluding GST
or four payments of $174.75
with
Learn More
Product Code:
WIIM-AMP ULTRA
Rating:
Information
One amp for music, TV, and room-tuned Hi‑Fi.
Connect passive speakers, stream in Hi‑Res, upgrade TV audio with HDMI ARC, and let RoomFit tailor the sound to your room.
100W per channel at 8 ohms
More power, more control
Premium unibody aluminum design
Sleek, durable, and thermally optimized
High-fidelity audio with premium components
Premium DAC, amplifier, and op-amps
Advanced Thermal Management
Stay cool, play longer
Next-Gen Connectivity
Fast, stable streaming
Elegant Touchscreen Design
Intuitive control and stunning aesthetics
RoomFit™ Room Calibration Built-In
Optimize soundstage and tonal balance
Post filter feedback technology (PFFB)
Overcomes speaker-load dependency
All-in-One Streaming Hub
Stream everything you love
Cinematic TV Audio
Immersive home theater sound
Smart Preset
One tap access to content and control
Unleash Studio-Quality Sound
Meet the WiiM Amp Ultra – our most advanced streaming amplifier yet. Built for music lovers, home theater buffs, and smart home fans, it delivers stunning 100W per channel (8Ω) with ultra-low distortion, pushing high-fidelity audio to every corner of your space. Whether it’s vinyl, Spotify, or cinematic surround sound—you’ll hear it like never before.
Specifications
Audio Performance
• Power Output (THD = 0.08%, two channels driven): 100 W per channel @ 8Ω, 200 W per channel @ 4Ω
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
•Total Harmonic Distortion (THD+N): ≤0.005%, -106 dB (A-weighted)
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Damping Factor: 94
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedance Range: 2 – 8Ω
Audio Processing
Premium Audio Components: ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.
Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
Dynamic Range: ≥120dB for high-resolution sound

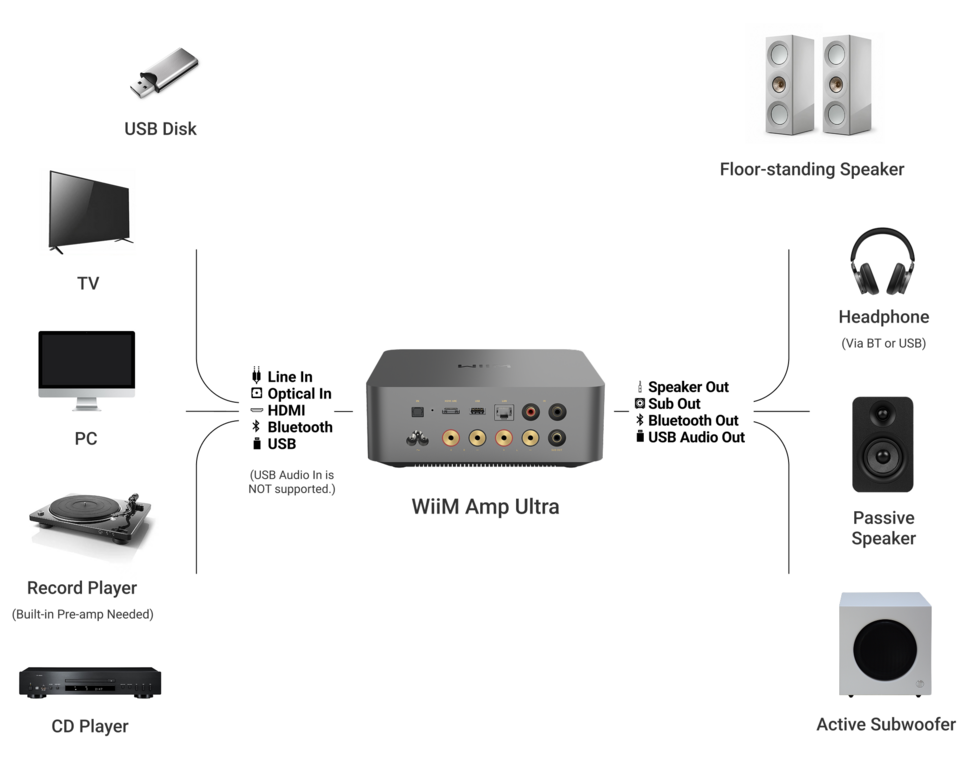

Input & Output Options
✅ Analog Inputs:
• 1x RCA Stereo: Connects to external audio sources like CD players or PCs
✅ Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
✅ Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
✅ USB Audio Output:
• Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant
✅ Sub Output:
• Dedicated output for powered subwoofers (RCA Mono)
Wireless & Network Connectivity
Wireless Connectivity:
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
Wired Network:
Ethernet (100Mbps): Standard RJ45 port
EQ & Sound Customization
Input-Specific EQ:
Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
EQ Tools:
▪ 24 Preset EQ Profiles
▪ 10-Band Graphic & Parametric EQ
▪ Built-in Room Correction with mic-guided acoustic tuning
Streaming & Smart Features
Streaming Protocols:
▪ WiiM Home App
▪ Google Cast
▪ Spotify Connect
▪ TIDAL Connect
▪ DLNA, LMS
▪ Roon Ready (Certification Pending)
• Multi-Room Audio:
Compatible with WiiM, Google Home, and Alexa multi-room systems
• Stereo Pairing:
Supports L/R speaker setup for enhanced stereo imaging
• Home Theater Mode:
Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC
• Smart Presets:
Quick access to favorite playlists, sources, or routines
• Alarm Clock:
Configurable time, repeat schedule, and music source
Touch Display
Screen:
3.5” glass-covered capacitive touchscreen
Functions:
▪ Playback controls, album art, EQ adjustment, input switching
▪ Queue view, preset access, VU meters, time/date in standby
▪ Custom wallpapers and onboarding setup (OOBE)
▪ Supports firmware updates directly via screen
Design & Controls
Chassis: Precision-machined unibody aluminum for durability & heat dissipation
Dimensions: 7.9” x 2.9” x 7.9” (200 x 75 x 200 mm)
Weight: 5.4 lbs (2.45 kg)
Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)
Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
Cooling System: Passive, silent operation
Package Contents
User Guide *1
Power Cable *1
RCA Cable *1
Optical Cable *1
HDMI Cable *1
Remote 2 *1
Banana Plugs *4
Power Cable *1
RCA Cable *1
Optical Cable *1
HDMI Cable *1
Remote 2 *1
Banana Plugs *4
