LUNOS goes Nexxt
De-centralized ventilation with heat recovery
Overview
Nexxt achieves heat recovery efficiency of up to 90%. Heat transfer is made via a cross-flow heat exchanger or optionally via a cross-counterflow heat exchanger. Power input commences as of 5 Watts and volume flows of over 90 m³/h can be generated. The Nexxt is extremely energy-efficient thanks to its very low power consumption: the ec fan technology with high efficiency enables low power consumption.
Handling

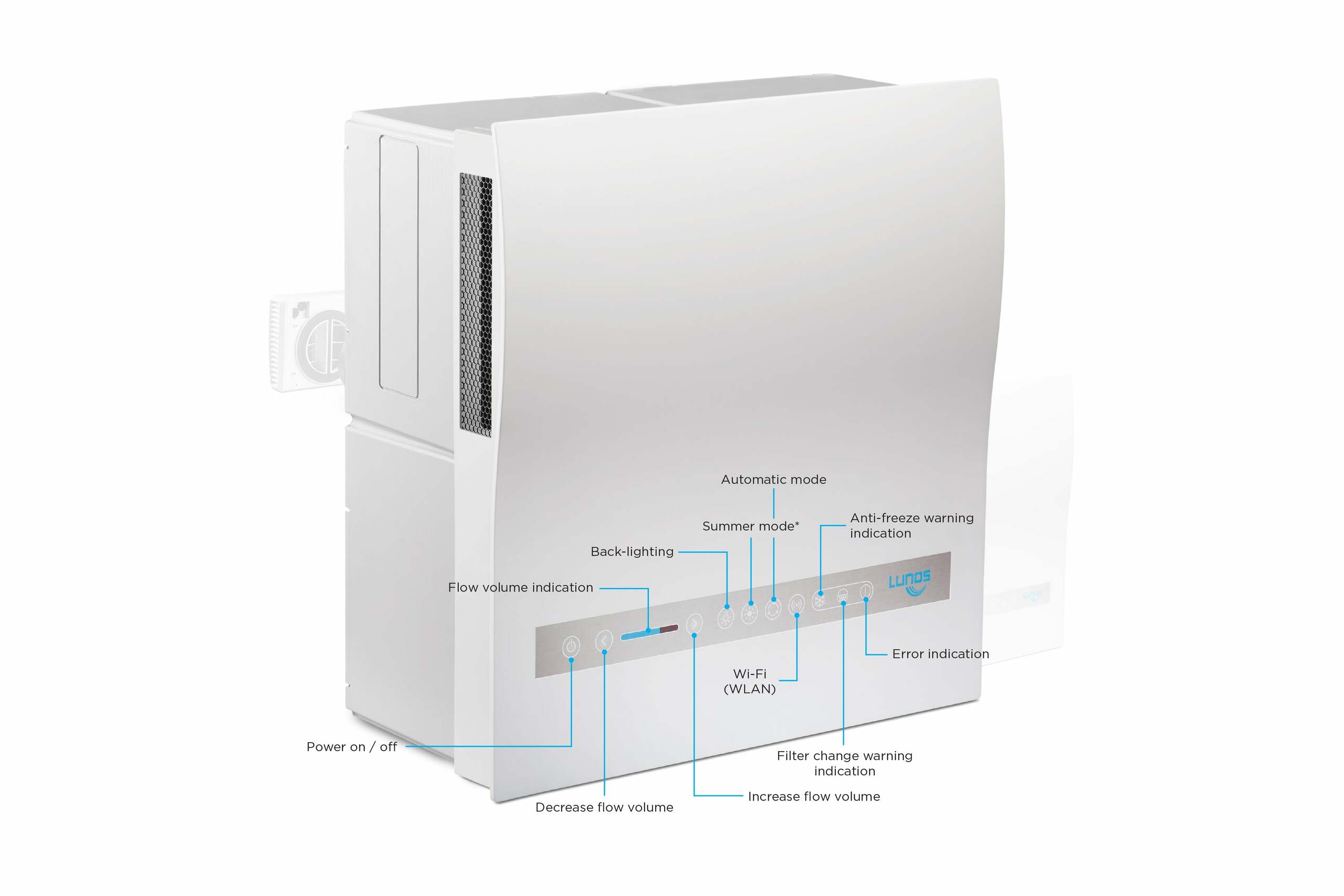

The Nexxt is topped off by a completely new operating concept. Placed behind an elegant screen, the control - when operated - provides a clear but subtle feedback by backlighting.
Controlling
Nexxt is controlled via humidity or temperature sensors as a standard, and optionally also via a CO2 sensor.
Installation

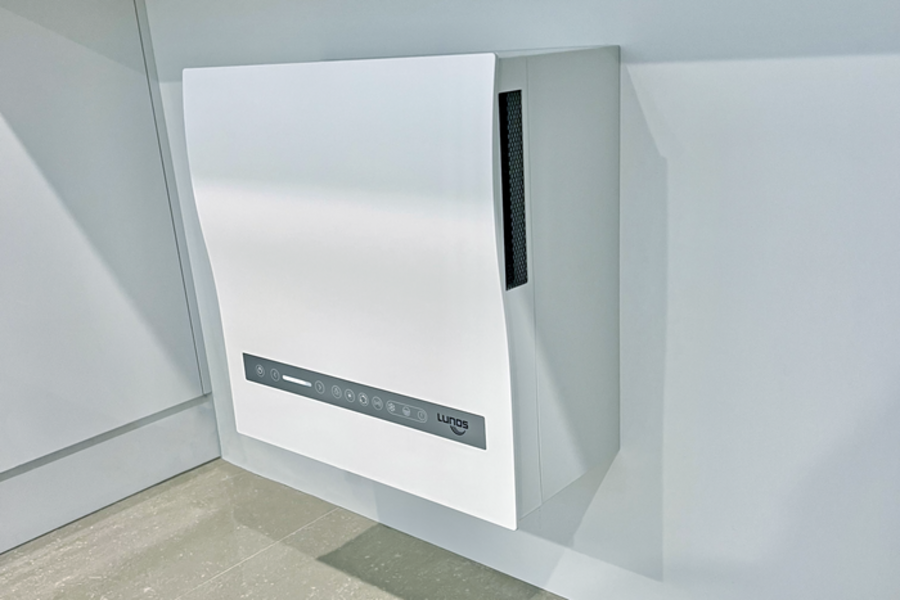

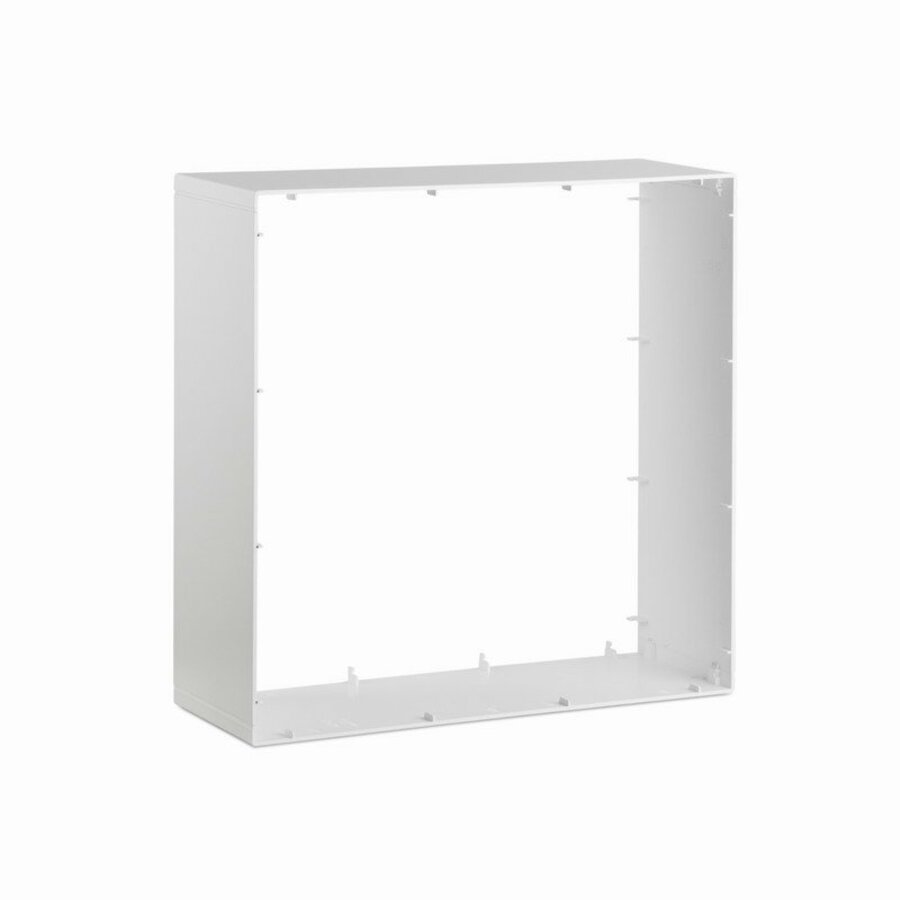

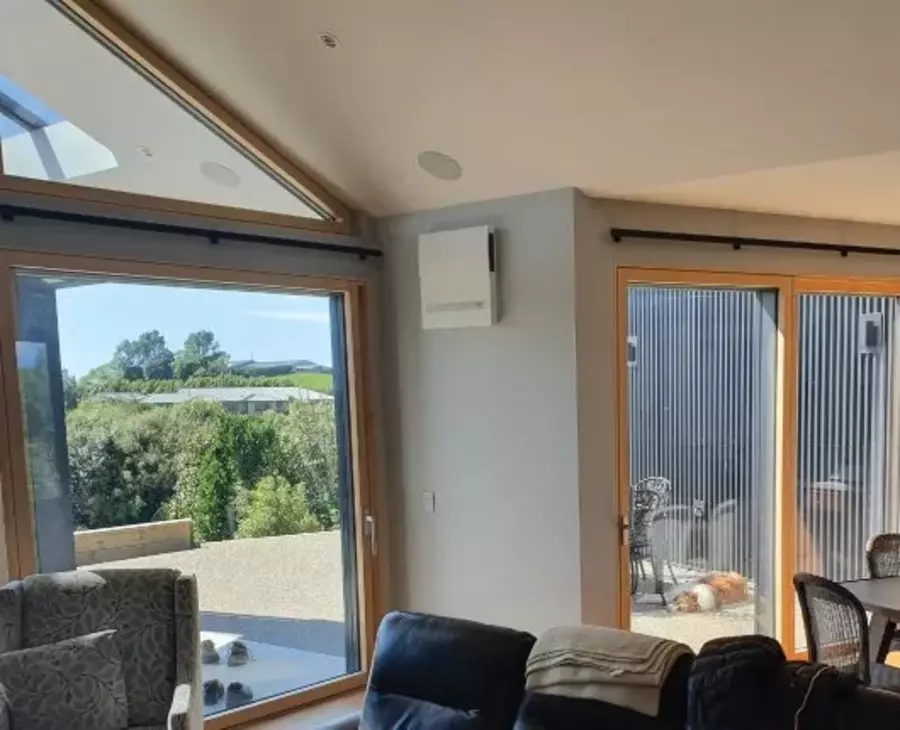

The Nexxt can be installed both under and on plaster. The installation housing of the surface-mounted version includes a stylish design frame making an attractive visual impact. The well-known 160 wall tube is used for the duct to the outside.
Advantages
Low noise level thanks to ec technology
The radial ec motors of the Nexxt are convincing all along the line. Nestled in a flow-optimised EPP chassis, the ec motors, which are already very quiet, are virtually “silenced”. Thereby, the Nexxt is currently one of the quietest units in its class.
The intelligent design achieves a standard sound level difference of 54 dB, making the Nexxt even suitable for use in the vicinity of airports.
Efficiency
Thanks to its very low power consumption, the Nexxt is very energy-efficient, thus making an active contribution to environmental protection. The highly efficient ec technology enables low power consumption.
Heat recovery & control technology

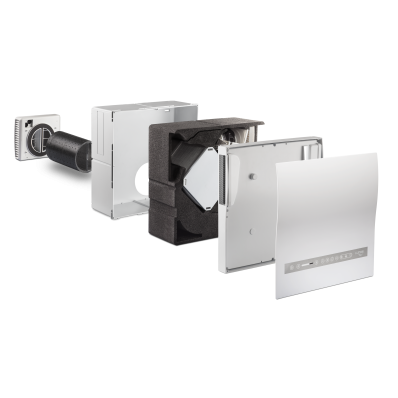

The key component of the Nexxt is the built-in device with heat exchanger:
Nexxt-E: The enthalpy heat exchanger achieves heat recovery levels of up to 85 %. 73 % according to EN 13141-8 at 75 m³/h (reference volume flow).
The integrated control provides for perfect interaction. Equipped with humidity-temperature sensors, even the standard version of the automatic control ensures efficient ventilation with humidity protection. Optional sensors such as, for example, the CO2 sensor can be integrated or connected by the EnOcean wireless technology.
Features
- LUNOS Design Line
The Nexxt adds the waveform to the current design language of LUNOS products while maintaining its basic principles and recognition value. With an inner screen size of 510 x 510 mm, the fan thus remains a stylish element of home technology. The front screen also contains the plainly designed control panel. The total depth of 240 mm can be lowered up to 67 mm into the outer wall.
- LUNOS Compatibility

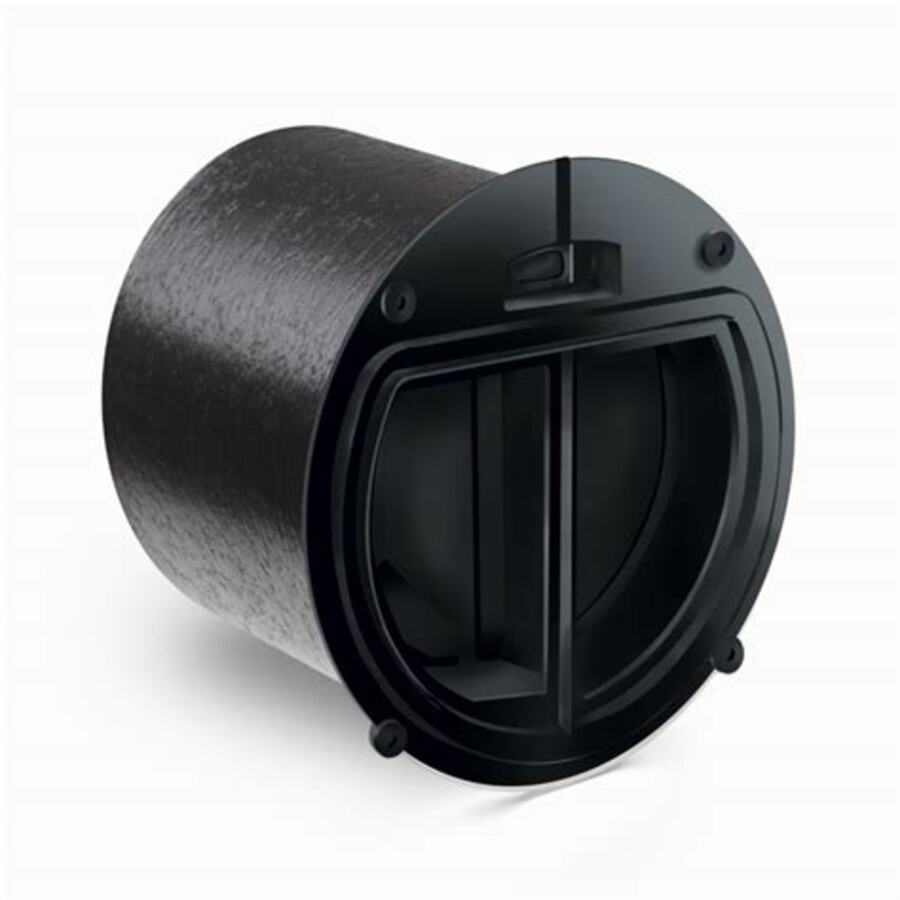

By using the 160 LUNOS standard wall-tube as wall duct, the Nexxt is compatible with the fans of the 160 series. Only for the outer covering a two-way outer screen or outer hood must be used. In the surface-mounted version, it is particularly easy to replace a 160 fan by the Nexxt.
- The Nexxt – housings can be used universally

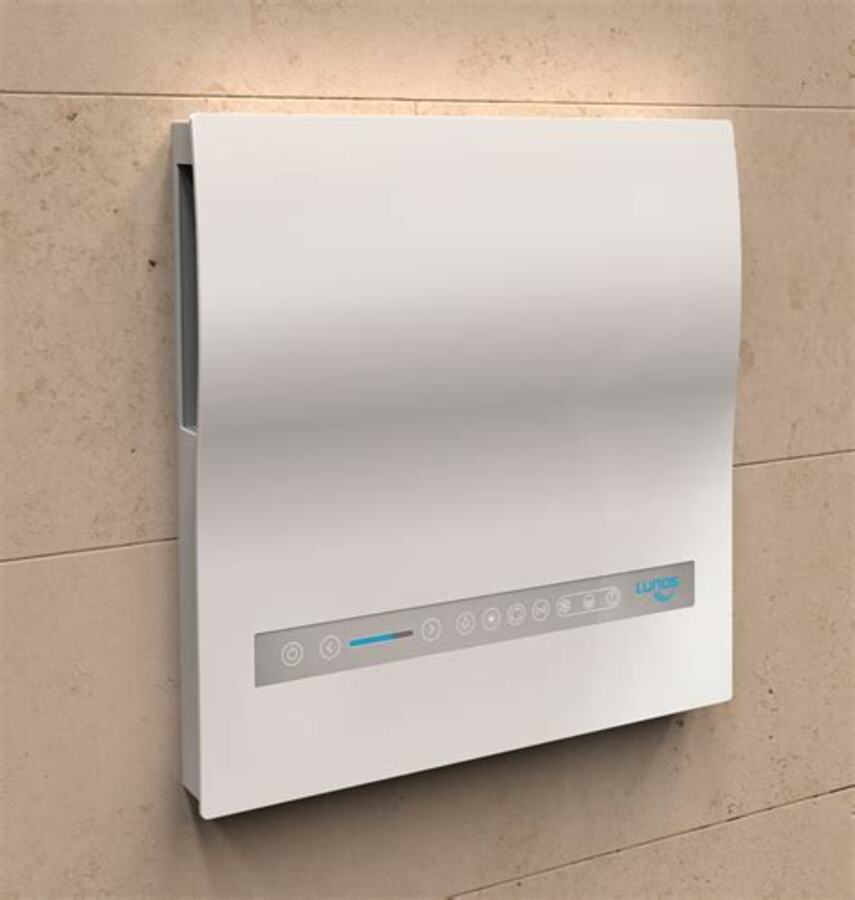

Developed for the outer wall, the fan can be installed in the surface-mounted or flush-mounted version. The flush-mounted version requires a wall thickness of at least 240 mm and the installation housing has a stylish design frame which makes it also visually appealing. The 160 wall-tube is used for the outside passage.
Specifications
Average thermal efficiency level* | 73% |
Air Flow | 15-110 m3/h |
Power Consumption** | 22 Watt |
Power Voltage | 200-240 V / 50/60 Hz |
Sound Power Level** | 40 dB(A) |
Core Hole Drilling | 162 mm |
Minimum wall thickness (surface mounting/flush mounting) | 110mm/280mm |

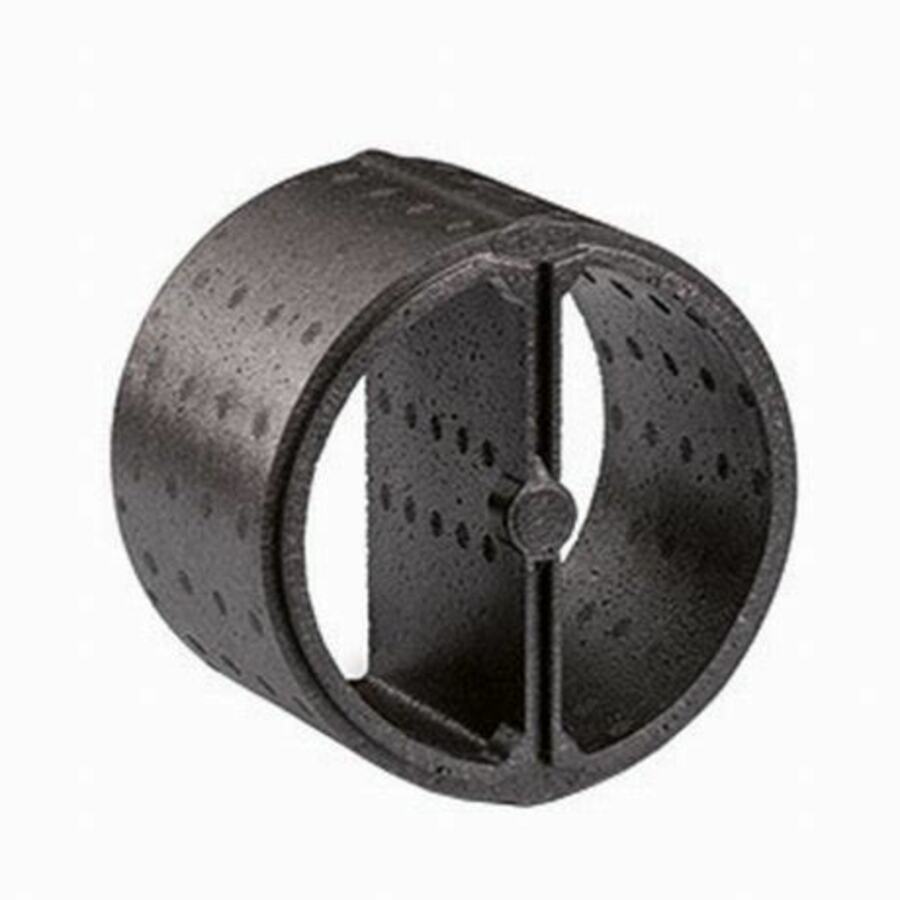

Depth in Wall Installation | 172 mm housing + 105 mm flap closure in wall duct |
Cutout Installation Housing | min. 482 mm x 482 mm |

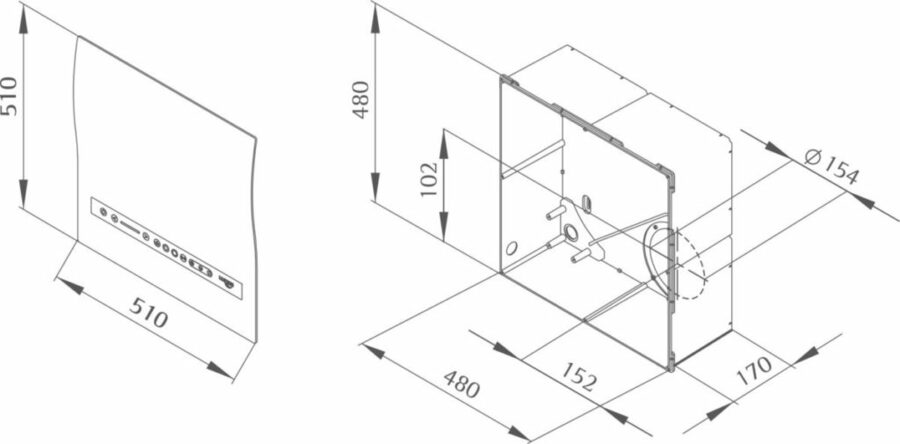

Dimensions of the Unit | 480 mm x 480 mm x 170 mm |
Size if the Inner Screen | 510 mm x 510 mm x 66 mm |
Size of the Outer Hood | 235 mm x 205 mm x 72 mm |
Energy Efficiency Class | A |
