Lunos Nexxt Replacement Filter 2PK (Class F7) - Lunos
|
Information

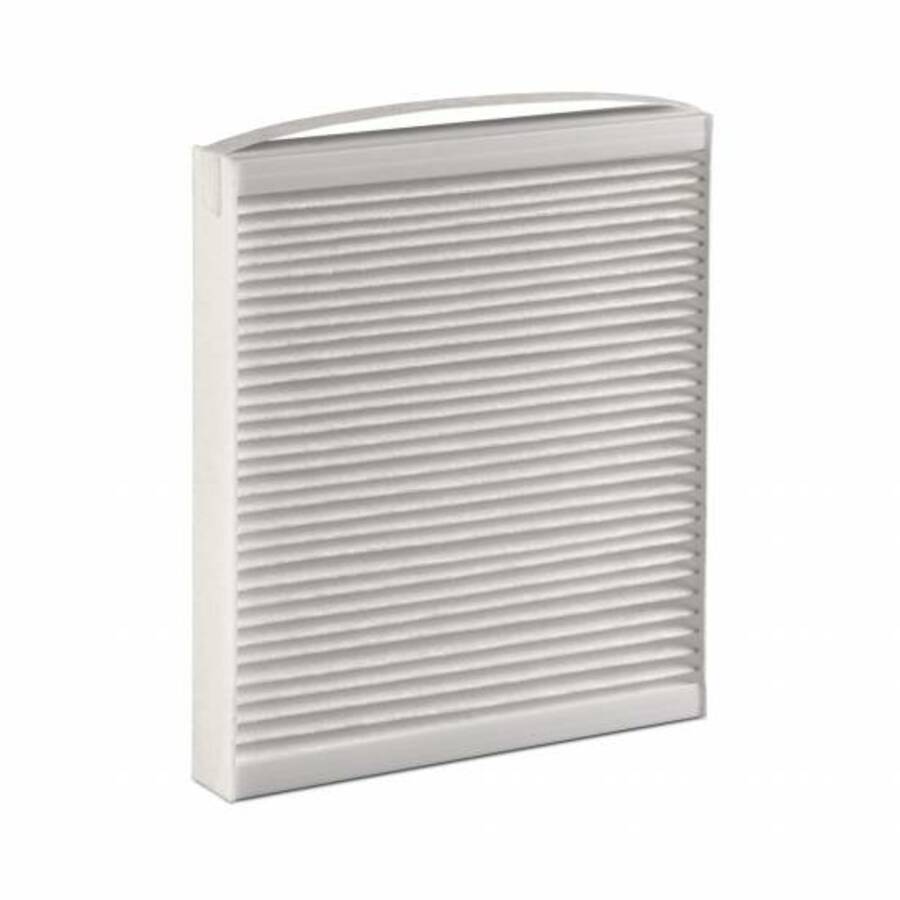

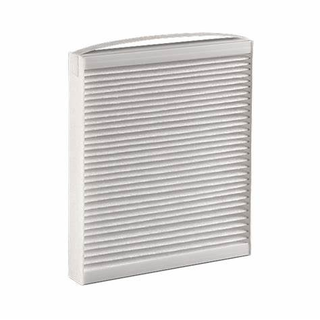

2 filters for the heat recovery unit Nexxt
Filter class F7; ePM1 55%
Filter change
A dirty filter is indicated by the filter change indicator. To change the filter, remove the inner screen and disconnect the plug connection to the control element. Remove the two filters from their holders. Insert two new filters. Pay attention to the flow direction marked on the filters. Reset the filter change indicator by pressing the corresponding button - the LED below the button goes out. Plug the control element back in and replace the inner screen.
Specifications
Filter Class F7
EN 779:2012
Medium- and Fine Filters Average Efficiency (Em) and Minimum Efficiency(M.E.) of 0.4 µm particles Final Test Pressure Drop 450 [Pa]
80% ≤ Em < 90%
M.E.: 35%
ASHRAE‑Standard 52.2-2007
MERV 13-14
