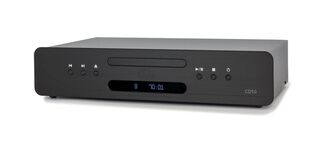

Atoll CD50 EVO CD Player
  • Atoll CD50 EVO CD Player

Atoll CD50 Evolution CD Player

Price:
NZ$ 2,095.00 including GST

NZ$ 1,821.74 excluding GST
CD50EVO
Rating:
( 0 reviews )
Colour:
  • Black
  • Silver
Do you need a Digital Board:
Purchase Qty:



CD50 Evolution

The Evolution series CD players feature numerous innovations, from power supplies to audio and conversion stages. In addition, all of these devices can accommodate a 24-bit/192 kHz DAC card that leverages the player's internal converter. The USB input is asynchronous.

  • 4mm brushed aluminum front face.
  • 8 regulated power supplies.
  • Linear power supply for digital stages with specific 30 VA transformer.
  • Separate 4.6 VA linear transformer for audio stages.
  • 1.6 VA transformer (low consumption).
  • Original TEAC central CD mechanism (latest generation).
  • Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
  • Double-sided printed circuit boards with nickel/gold finish.
  • BURR-BROWN PCM1791A converter:
             – 24 bits/192 kHz.
             – Dynamic range: 113 dB.
             – Signal/Noise ratio: 113 dB.
  • Low-power OLED display.
  • Displaying CD-Text.
  • Discrete differential audio output stages biased to Class A.
  • ATOLL Global Remote Control.
  • Optional 24-bit/192 kHz digital card for all Evolution series CD players.

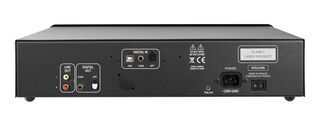

Atoll CD50 Evolution Rear Panel

CONNECTIVITY

Outputs

CONNECTIVITY

Exits

1 Analog line output (right and left) (RCA).
1 Coaxial digital output (to a D/A converter).
1 Optical digital output (to a D/A converter).
12V Trigger output .

Optional digital map:

1 USB input (type B).
1 Coaxial digital input.
1 Optical digital input.





DC200 DIGITAL OPTIONAL CARD

Signature range CD players can be optionally equipped with a three-digital input card:

  • 1 Coaxial input (S/PDIF – 24 bits/192 kHz).
  • 1 Optical input (S/PDIF – 24 bits/192 kHz).
  • 1 Asynchronous USB-B input: 16-bit to 32-bit PCM stream up to 192 kHz asynchronously (USB interface: XMOS with program specifically developed for ATOLL).


XMOS SPECIFIC DRIVER

Important  : Using the optional DAC card's USB input requires downloading a specific driver for Windows computers. This driver can be downloaded below. This driver is not required for Mac and Linux.

Download it here:

XMOS-Stereo-USB-Audio-Class2-Driver-30BB_v4.13.0.exe









TECHNICAL DATA

Power supply : 30 + 4.6 + 1.6 VA
Total capacitive : 16,700 µF
Converter (D/A) : PCM1791A
Dynamic : 113 dB
Signal/Noise Ratio : 113 dB
Distortion at 1 kHz : 0.001%
Output level : 2.5 Vrms
Output impedance : 5.6 Ω
Bandwidth : 5 Hz – 20 kHz
Rise time : 2.0 µs
Standby consumption : < 0.5 W
Operating consumption : 9 to 16 W
Dimensions (mm) : 440×280×95
Weight : 6 Kg
