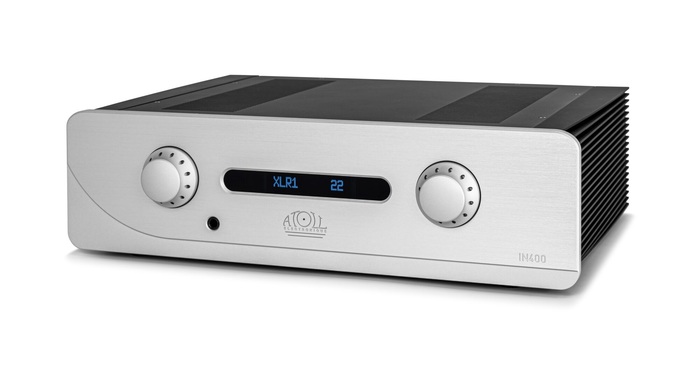

IN400EVO - Atoll IN400 EVO 160W Integrated Amplifier

• Front face in 10 mm brushed, micro-blasted and anodised aluminium, with high-precision engraving.
• Heatsink and buttons in billet aluminium.
• 2 mm steel frame.
• One toroïdal transformer: 1050 VA for audio section
• One transformer: 1.6 VA for control logic.
• Integral double mono structure:
           – Separate windings for the tracks.
           – 1 attenuator per channel (with switched resistors).
• Bipolar transistor input stages.
• Current sources with bipolar transistors and LEDs to ensure perfect voltage stability.

• Darlington transistor driver stages.
• Audio stages with perfectly symmetrical structure and very low counter-reaction.
• Power stages with MOS FET transistors (8 per channel) are rigorously matched.
• Precise adjustment of the balance and the possibility of memorising it.
• Possibility of choosing the standby mode: Low consumption or preheating.
• Configurable button backlighting.
• High contrast OLED display: ON or OFF mode (after 5 seconds of inaction).
• ATOLL global remote control delivered as standard.
• The IN400 Evolution can receive the following optional boards:
            – DAC boards: DA100 and DA200.
            – PHONO boards: P50 and P100 (can be combined with DAC boards).

CONNECTIVITY

Inputs

• 2 XLR inputs.
• 5 Line inputs: AUX or PHONO (optional), CD, TUNER, DVD, TAPE.
• 1 BY-PASS input.

Outputs

• 1 Ø 6.35 mm headphone jack output.
• 1 12V Trigger output.

Various

• Possibility of adding DA100 or DA200 digital boards (optional).
