DENON AV AMPLIFIER AVC-X 4800H BLACK 8K 9.4channel - Denon 8K AV Receivers

  • DENON AV AMPLIFIER AVC-X 4800H BLACK 8K 9.4channel

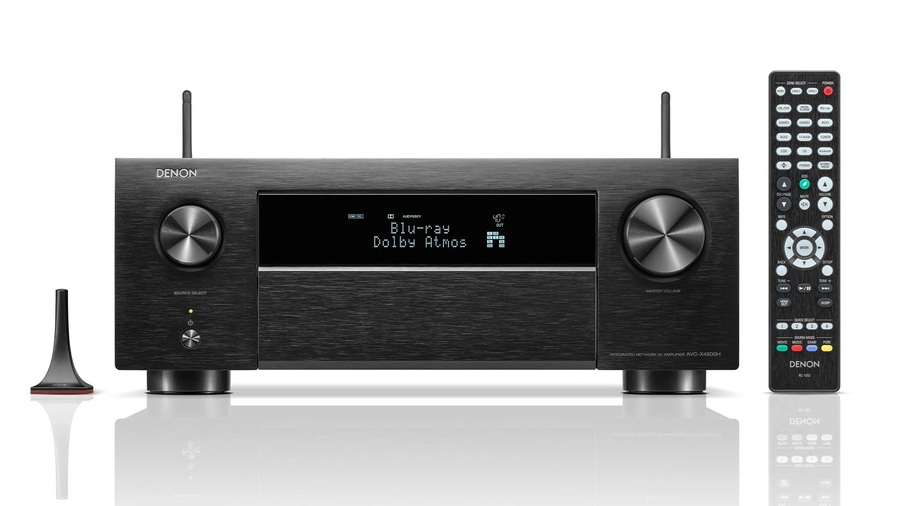

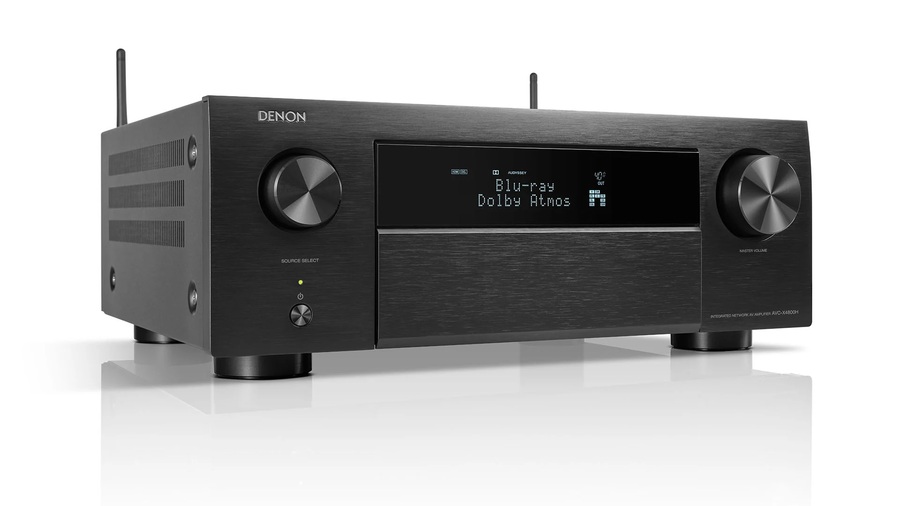

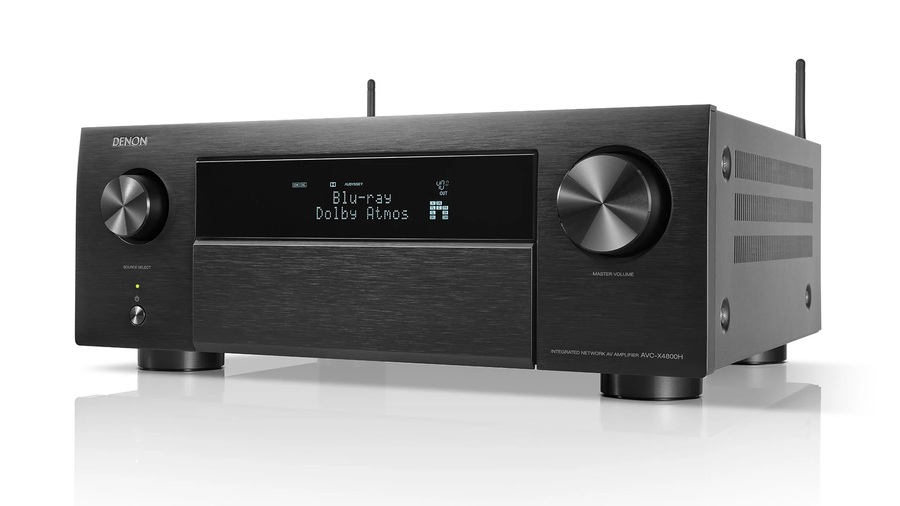

DENON AV AMPLIFIER AVC-X 4800H BLACK 8K 9.4 Channel Receiver
NZ$ 5,299.00 including GST
NZ$ 4,607.83 excluding GST
In-Stock at Supplier
( 0 reviews )
Purchase Qty:


8K video and 3D audio experience from a 9.4 channel receiver

With nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X3800H envelops larger living spaces in theater-quality sound. Enjoy amazing 8K video quality and with HEOS® Built-in, wirelessly stream and share online music between rooms.

Key Features

  • Enveloping 3D audio: Feel like you're in the center of the action with enveloping 3D sound.
  • Expert ready: You'll be amazed at the available configuration options to best fit your space.
  • Geared for 8K: Enjoy amazing video quality from the latest 8K technology available.
  • Optimize for your room: Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional, with future update).

Dolby Atmos

Feel every dimension in Dolby Atmos. Upgrade your home theatre with a 5.4.4 speaker setup to unleash a fully immersive 3D audio experience from Dolby Atmos content. Dolby Surround upmixer engages all speakers to create 3D audio sensations from legacy content. Dolby Atmos Height Virtualization Technology creates the sensation of overhead sound even without a 5.1.2 system. You can also enjoy Dolby Atmos music tracks available from Apple Music, Amazon HD, TIDAL, or a compatible streaming device.



DTS:X immersive audio content places sound where it would naturally occur in space, creating lifelike, multi- dimensional audio. DTS Neural:X upmixer offers improved immersion and heightened realism for legacy content. DTS Virtual:X provides immersive audio without height channels, creating virtual height effects in a 7.1, 5.1 or 2.1 speaker setup.


IMAX Enhanced

Get the most premium at-home entertainment experience with IMAX Enhanced—the latest technology from DTS that sets a new standard for home theatre imaging, sound, scale, and clarity. See clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX. You can enjoy IMAX Enhanced experience starting from 5.1.4 speaker setup. IMAX Enhanced compatible TV or projector is required.


Auro 3D

Auro-3D elevates the home theatre experience to amazing new levels by delivering the excitement of three- dimensional sound for music, games, broadcast, and films, putting you in a cocoon of life- like sound. Turn your existing audio-visual collection into an Auro-3D experience, thanks to the Auro-Matic upmixing engine.


360 Reality Audio

360 Reality Audio is a new immersive music experience that uses Sony‘s 360 Spatial Sound technology. Individual Sounds such as vocals, chorus, piano, guitar, bass and even the sounds of the live audience can be placed in a 360 spherical sound field. With 360 Reality Audio, music has never been so immersive and so real. Select Denon AV receivers are capable of 360 Reality Audio playback by connecting a 360RA streaming device via HDMI. Stay tuned for further updates!


HDMI Connectivity with ARC/eARC

Supports the latest technology on all HDMI inputs and the output. ARC (Audio Return Channel) or eARC (Enhanced Audio Return Channel) makes playing TV audio through your AV receiver simple with just a single HDMI connection. eARC provides HD and 3D audio transmission such as Dolby TrueHD, DTS HD Master Audio, and Dolby Atmos while ARC is limited to conventional 5.1ch audio formats or PCM.


8K / HDCP 2.3

Enjoy pristine 8K picture quality on your 8K TV or projector. Supports both 8K pass-through and 8K upscaling of 4K content. Supports HDCP 2.3, the latest copy protection standard, for peace of mind when streaming copy protected content.


Brilliant color from HDR 10+

Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through. HLG offers HDR technology over broadcast content. Both Dynamic HDR and HDR10+ use dynamic metadata to optimize shadows and highlights as screens change.


Dolby Vision

Compatible with Dolby Vision so you can enjoy Dolby Vision content from a compatible source device and TV. Dolby Vision is a stunning HDR imaging technology that brings extraordinary colour, contrast, and brightness to the screen.


Next-generation gaming

Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM) for smooth, lag- free gaming experience when connected with the compatible gaming devices.


HEOS Built-in

With HEOS® Built-in, your AV receiver can stream music wirelessly across compatible HEOS components from a variety of free and premium streaming services. Consumers can also enjoy their favourite music in any room of the home wirelessly. Play the same song in every room or select a different song for each connected room via a variety of streaming sources. Add Denon Home speakers to more rooms and control it all with the HEOS app.


High-resolution audio

Discover the incredible fidelity of high-resolution audio tracks and enjoy music as the artist intended. A front USB port supports up to 24bit/192kHz hi- res audio playback from a USB drive. Supported audio formats are MP3, WMA, WAV, MPEG-4/AAC, FLAC, and ALAC.


Denon Setup Assistant

Award-winning guided Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen to connect your speakers, perform speaker measurements, and connect source devices. For additional convenience, the AV receiver renames HDMI inputs automatically when connected or you can rename manually at your convenience.


Audyssey premium suites of room correction technology

Denon AV amplifiers use the Audyssey suite of EQ software for simple, accurate set-up and calibration. With the supplied Audyssey measuring microphone, Audyssey measures all the speakers in your home theatre, and tunes the AV amplifier to provide the smoothest, most optimal overall listening experience for your room. This AV amplifier supports Audyssey MultEQ XT32 room correction technology. The other supported Audyssey features are Dynamic EQ, and Dynamic Volume.


Audyssey MultEQ Editor app

You can go even further with the Audyssey MultEQ Editor app, going “under the hood” to view and adjust settings for detailed tuning—allowing you to customize the sound more precisely to the specific problems in your room, and tailor the sound to your personal preferences. With this comprehensive app, you can harness the power of Audyssey MultEQ XT32 to take total control of the way your home cinema sounds. The app is available for purchase in iOS and Google Play stores.


11-channel processing, 9- channel amplification

9-channel amplification does not mean you need to stop at max 11 channel speaker configuration. With external 2-channel amplification that can be assigned to either Front, Left, and Right, or a pair of height channels, you can setup an 11-channel speakerconfiguration such as 7.1.4, allowing you even moreflexibility and an engulfing audio experience.


Subwoofer outputs & settings

Blanket yourself in evenly distributed, accurate bass.Featuring up to four subwoofer outputs to smooth out low frequencies and provide better dispersion. No audible peaks or dips — just powerful, roomfilling bass. Tweak your subwoofer settings to your preference when more than two subwoofers are connected. Select "Standard" if you want evenly distributed bass performance. Select "Directional" if you want more directional bass performance seamlessly integrated into the speaker channel closest to each subwoofer in the room.


Pre-Amplifier Mode

Your Denon AV amplifier can work as a perfect AV preamplifier with the latest HDMI connectivity. Pre-Amplifier Mode provides a cleaner signal path and more tolerance in clipping level by disconnectinginternal amplifiers. Add the flexibility to disconnectselect speaker channels so that you can use the AV receiver's built-in amplification to drive non-critical channels to get a clearer signal path for the channels driven by external amplification.


Dirac Live upgradeability

The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live® Room Correction applies state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance.Select Denon AV receivers support Dirac LiveUpgradability. You can purchase a Dirac Live license key to unlock the functionality. Visit for more information. Upgradability will be supported via a future firmware update.


Multichannel Surround

DTS HD Master, DTS:X, DTS:X Pro

Yes, Yes, No

DTS Neo:X, DTS Neural:X

No, Yes

DTS Virtual:X


IMAX Enhanced


Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music

Yes, Yes, Yes, Yes

Dolby ProLogic Ilz, Dolby Surround

No, Yes

Auro 3D


360 Reality Audio / MPEG H

Yes, Yes

Multichannel Stereo


Max. Number of Processing (Pre-Amp) Channels


Sound Enhancements

Discrete Power Amplifier


D.D.S.C. HD Digital

Yes (32 bit)

Pure Direct


Clock Jitter Reducer


Alpha Processing

AL32 Processing Multichannel


MultEQ XT32

Audyssey Dynamic EQ, Dynamic Volume

Yes, Yes

Audyssey LFC


Dirac Live Upgradability


Compressed Audio Restorer



Media Server


HEOS Wireless Multi-Room Technology


Alexa / Google Voice Assistant / Apple HomePod

Yes, Yes, Yes

Lossy Formats: MP3, WMA, AAC

Yes, Yes, Yes

Lossless Formats: FLAC, ALAC, WAV

Yes, Yes, Yes

Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)

Yes, Yes, Yes

DSD Audio Streaming

Yes (2.8/5.6MHz)

AirPlay 2




Spotify Connect


Roon Tested


HEOS App Control


Compatible with Remote APP for Smart Phones

Denon 2016 AVR Remote

Ethernet Ports







HDMI Inputs: Back, Front

7, No

HDCP2.3 support


HDMI Outputs: Main, Zone

2, 1

HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB

Yes, Yes

HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR

Yes , Yes, Yes, Yes, Yes

ALLM (Auto Low Latency Mode) Pass-through for gaming


Variable Refresh Rate, Quick Flame Transport, Quick Media Switching

Yes, Yes, No

3D Signal Pass-through


8K Signal Pass-Through, Scaling, GUI Overlay

Yes, Yes, Yes

DSD Audio Capability


Audio Return Channel (ARC), Enhanced ARC

Yes, Yes

Auto LipSync


Multi-room CI

Multi-Room Zones


Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog

Yes (2ch), Yes (2ch), Yes, Yes

Zone Audio Output: Speaker, Pre-Out

Yes, Yes

Zone HDMI Output from HDMI Source


IP Control, RS232 Control, Web Control, App Control

Yes, Yes /Yes, Yes

Remote In / Out

Yes, Yes

DC Trigger Output


HDMI Diagnostics



Auto Speaker Setup by Microphone

Audyssey MultEQ XT32
Dirac Live (upgrade)

Front Display

2-Line FLD

GUI Languages


Setup Assistent


Quick Select Plus, Quick Select

Yes, No

Variable Crossover


Optimized Bass Redirection


Bass Sync


ECO Mode


Auto Power Off


Sleep Timer

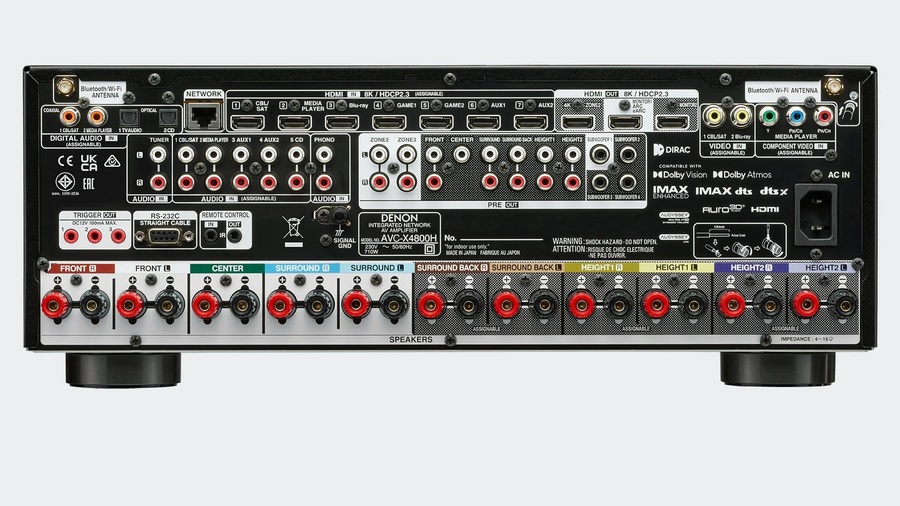

Inputs Outputs

HDMI In, Out

7, 3

Multi-Room Video Out: Video, HDMI

No, Yes

Analog In, Out

6 / No

Phono (MM) In


Digital In: Optical, Coaxial

2 / 2

Multi-Room Out: Analog, Digital

2 / No

Multichannel Preout

Yes (11.4)

Subwoofer Out

4 (independent)

Speaker Terminal: Gold-Plated Screw, Regular Screw

No, Yes

Number of Speaker Terminals


Speaker A / B


Bi-amp Drive


Multi-Room Speaker Terminal


Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB

No, No, No, No, Yes

USB Audio, Made for iPod, Made for iPhone

Yes, No, No

AM/FM Tuner



Number of Power Amps


Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)


Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)


Power Output (6 ohm, 1 kHz, 10% 1ch Drive)



Metal Front Panel


System Remote Control


Pre-Programmed, Learnable, LCD Display

Yes, No, No

Power Consumption in W


Power Consumption No-Sound (ECO On / Off) in W

65 W / 110 W

Standby Consumption in W


CEC Standby Consumption in W


Network Standby Consumption in W

Less than 2.0

Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】

434 x 389 x 167
( 434 x 389 x 236 )
【 434 x 379x 167 】

Weight in kg


Carton Weight (inc. product) in kg
